Dreambox 800hd Pro DVB S2 Set Top box dm800s ALPS M Tuner Simcard 2.10

Product Description

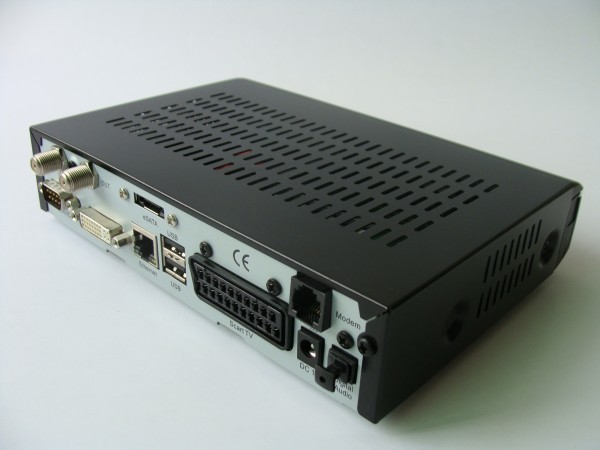

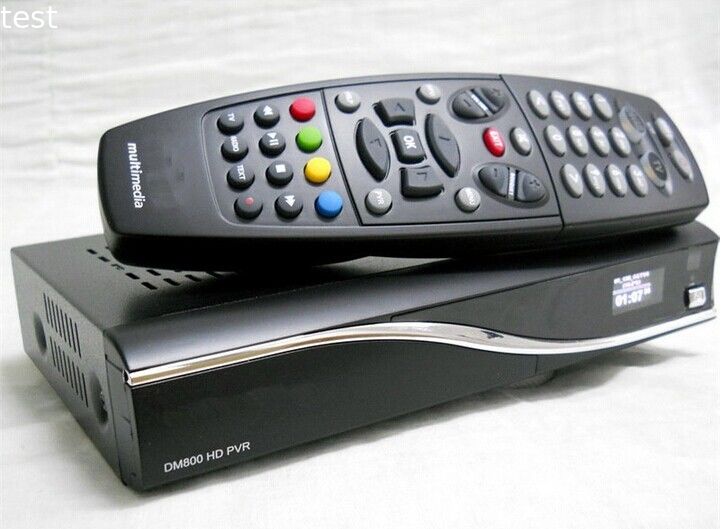

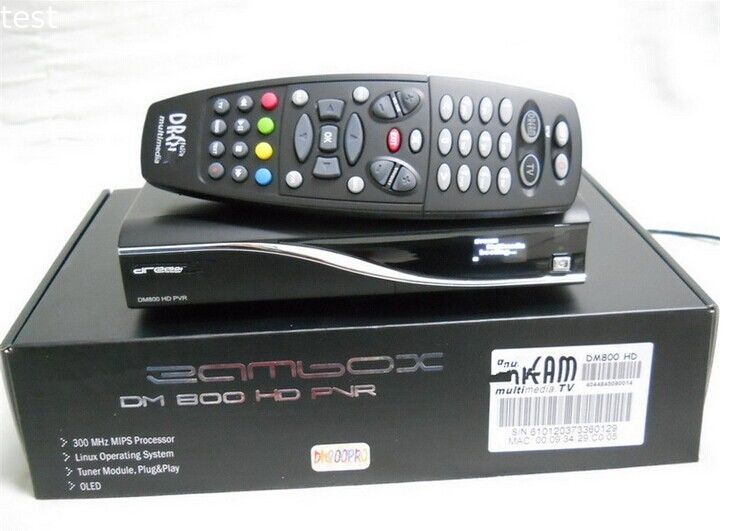

Dreambox 800hd Pro DVB S2 Digital Satellite Receiver dm800s ALPS M Tuner Simcard 2.10

Main features are a 400 MHz processor the DVB receiver 800 HD se supports the Linux TV API
1. dreambox 800hd
2 .300 MHz.  Linux TV API
3. Colored OLED Display
4. HDMI connector
5. SIM 2.1. Newest good quality Tuner

Features:

l          300MHz MIPS processor

l          Single-EPG (Electronic Program Guide): sortable by data or alphabetically

l          Automatic search for additional air dates of a show and easy recording them by timer

l          Multi-EPG: graphically and text-based

l          Timeshift

l          List of recordings:sortable by date or alphabetically and free choice of different views

l          Timer programming manually or by EPG

l          Individually configurable timers,e,g,single or recurring timers

l          DiSEqC 1.0/1.1/1.2/1.3(USALS)

l          Channel change in less than a second

l          Start wizard for initial setup

l          Pre-intalled service list for DVB-S

l          Support of favorite lists

l          Full automatic channel scan

l          DVB/teletext with level 2.5 support

l          Easy expansion of base function with the use of plugins

l          MP3 playback

l          Skinable OSD in many languages

l          Remote controllable via Web-interface and streaming of the TV-/Radio stations to any PC connected to theTechnical parameter:

DBS-Tuner without DVB-S2

l          European plug interface

l          Frequency Range 950 -2150MHz

l          Demodulation DVB-S(QPSK)

l          Signal level -65dBm -25dBm

l          DBS-Tuner Input Connector F-Type female

l          Input impedance 75ohm

l          Loop through interner loop trough

l          AFC+/-Mhz

l          DVB-S:Viterbirates: 1/2, 2/3, 3/4,5/6,7/8,automatical adjustment(k=7)

l          Roll-off Factor 35%Video decoder:

l          Video compression MPEG-2 and MPEG-1 compatible,H.264

l          Video Formats 4:3 / 16:9

l          Letterbox percolating for 4:3 TV-Device

Audio decoder:

l          Audio compression MPEG-1&MPEG-2 layer I and II

l          Audio Mode Stereo ,Dolby Digital

l          Frequency:32kHz,44.1kHz,48KHz,16kHz,22.05kHz,24kHz

Analog output:

Output level L/R 0.5 Vss on 600Ohm

 THD>60dB(1kH)

Crosstalk<-65dB

Digital output:

Output level 0.5Vss on 75Ohm

Sampled Data Filtering 32kHz,44.1kHz,48kHz

l S/P-DIF-Output optical(AcC3)

Physical specification:

Ambient Temperature +15°C...+35°C

 Humidity<80%
