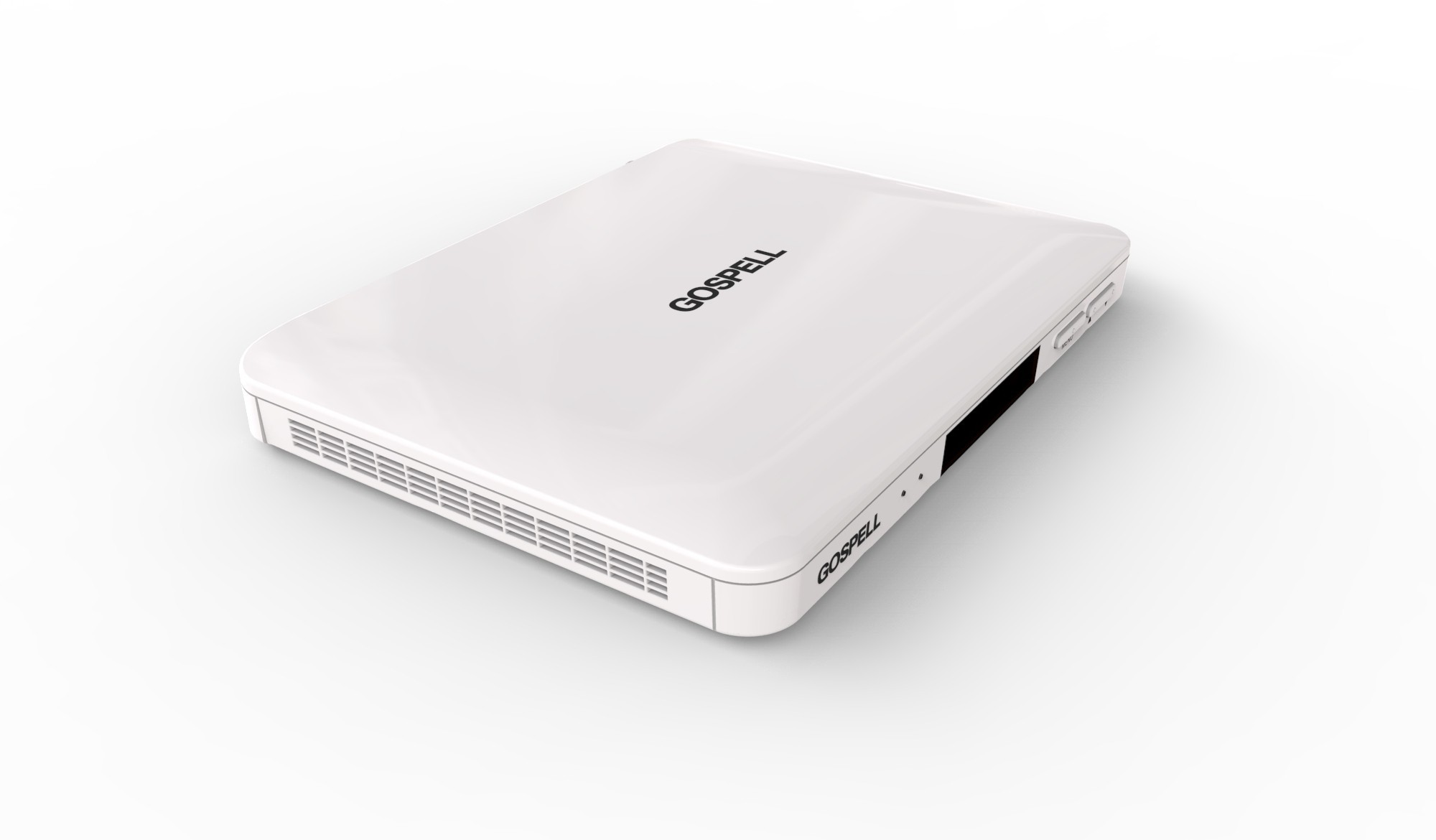

HD MPEG-4 Set Top Box

Minimum Order Quantity : 500pcs Delivery Time : Within 30 Days
Payment Terms : TT/LC Supply Ability : 100.000Pcs/Month
Place of Origin: CHENZHOU Brand Name: GOSPELL
Model Number: GSR-GK7352S

Detail Information

High Light:

Television Set Top Boxes

,

Wifi TV Box

Product Description

DVB-S2 & ANDROID HD MPEG-4 SET TOP BOX

Model No: GSR-GK7352S

1: Support Conax  / Irdeto / Gospell CAS
2: HDTV DVB-S2 Decoding
3: Support Android system with WIFI
4: Viarous APP application


Main Features:



  • DVB-S & DVB-S2 Compliant.
    Supports Android
    MPEG-2 and H.264 HD Decoding.
    Video Resolution: Max to1080P.
    USB2.0 for PVR, Time Shift, Timer.
    Supports MP3/ WMA, AVI/MKV/MP4/…, BMP/JPG playback.
    Blind scan, Sat scan, TP scan
    Max 2000 TPs and 5000 Programs restore.
    DiSEqc1.0/DiSEqc1.2/ DiSEqc1.3( USALS).
    Supports 7-day EPG, Teletext and Subtitle.

    Parental lock, Channel edit, Favorite edit.

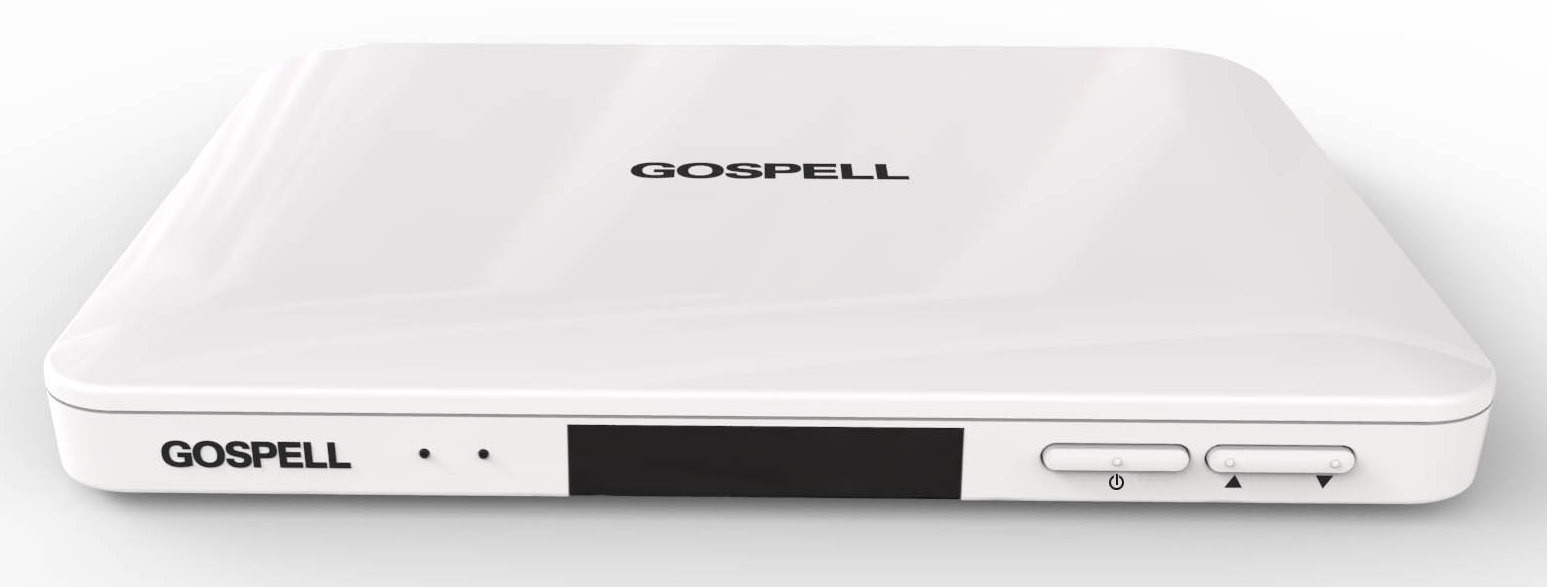

Front panel:

HD MPEG-4 Set Top Box 0
                                                     T-Size:200*150*24

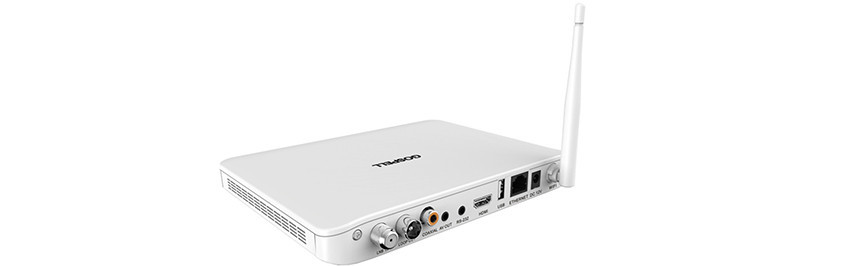

Rear Panel:
HD MPEG-4 Set Top Box 1

Technical specification



  • Chipset and Memory:

CPU Speed: 600MHz@1500DMIPS(Hisilicon,HI3716M)
Nand Flash: 2GB
RAM: DDR3-512MB



  • Power:

LNB IN: x1
Loop Out: x1
Coaxial: x1
RS232: x1
HDMI: x 1
AV OUT: x1
ETHERNET: x1
USB2.0 (for External USB PVR function): x1
WIFI : x1



  • Interface:

LNB IN: x1
Loop Out: x1
Coaxial: x1
RS232: x1
HDMI: x 1
AV OUT: x1
RF:x1
USB2.0 (for External USB PVR function): x1
CA: x1




  • TUNER

Tuner: DVB-S2
Receiving Frequency: 950~2150MHz
Input signal level: -25dBm~ -65dBm(75ohm)
SEqC1.2/ DiSEqC1.3/22KHz
NB Power: 13V/18V(Max 350mA)



  • Demodulation

Demodulation: QPSK(SCPC/MCPC)/8PSK
Symbol rate: 1.5~45MSPS



  • Video Decoding

Compliant with: MPEG-4 part10 /MPEG-2 ISO/IEC 13818,
MPEG-4 Simple/Main/Advanced Profile@Level3(10Mbps),
MPEG-2 Main Profile@ Main Level(15 Mbps)
H.264 MP@L3(10Mbps),H.264 HP@L4.1 (25Mbps)
Video Resolution: 480i/480p/576i/576p/720p/1080i/1080P



  • Audio Decoding

Compliant with: MPEG-1/2/3, AC-3(Option), HE AAC(Option)
