Android DVB-S2 Set Top Box

Product Description

Android DVB-C IPTV Set Top Box

Main Features:

• Fully compliant with DVB-C digital TV reception standards
• Android 4.0 OS
• HDTV/SDTV MPEG-2 & MPEG-4 H.264 decoding
• Support GOSPELL CAS
• Support 480i/480p/576i/576p/720p/1080i/1080P
• HDMI output for High Definition
• Support S/PDIF audio output
• Support VOD
• Support teletext/subtitle/multi-language
• Support EPG
• Channel edit function including Favourite, Move, Delete, Lock,Skip,Rename
• Variable aspect ratio 4:3/16:9 4:3 Pan & Scan or Letter Box modes
• Support USB 2.0 software upgrade ang OTA upgrade
• Support USB 2.0 PVR. MP3, AVI,DAT,MKV,MP4,VOB,WMA(optional),BMP,JPG photo playback

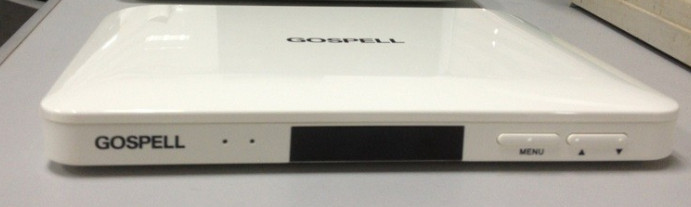

Front panel:

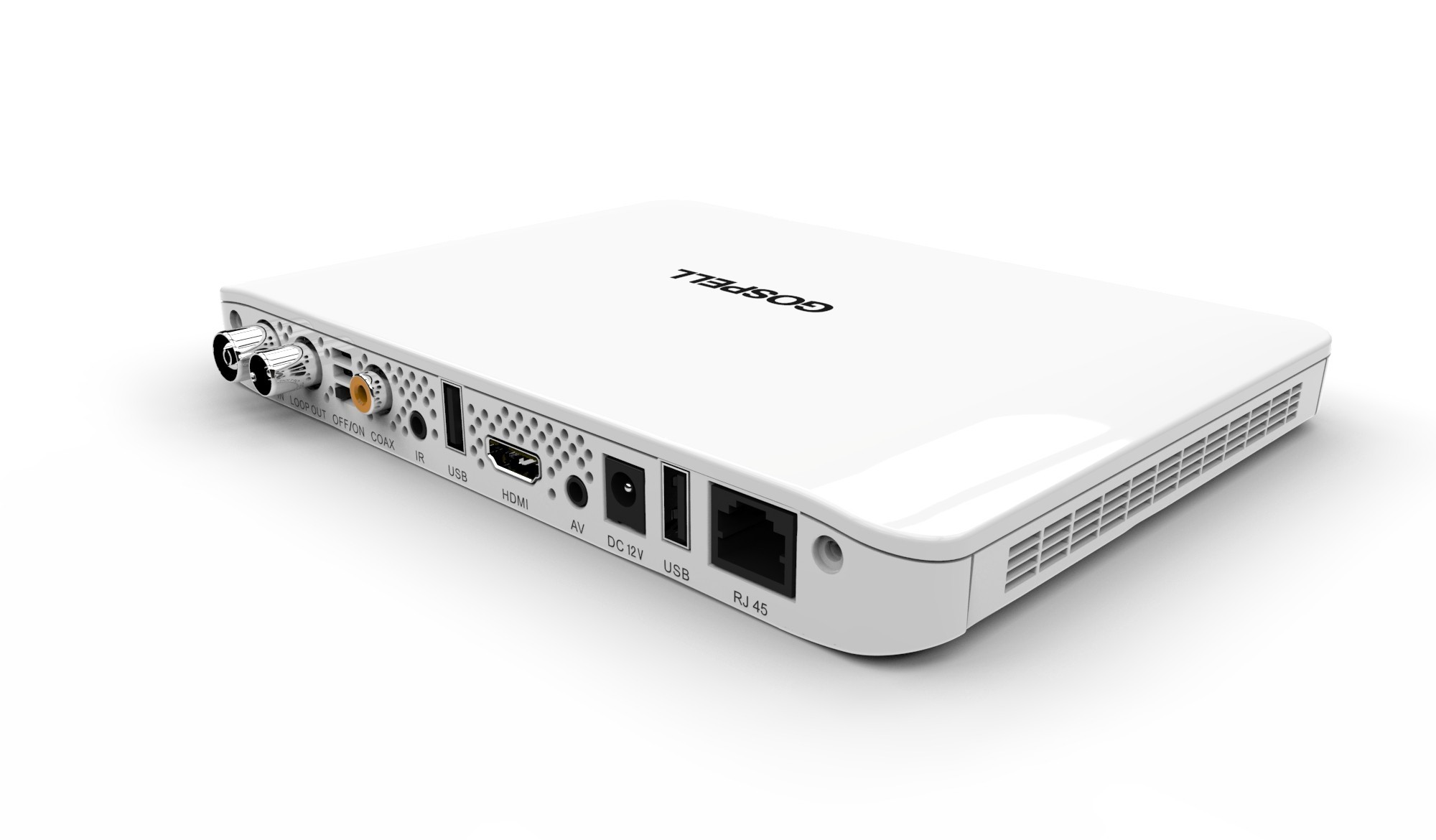

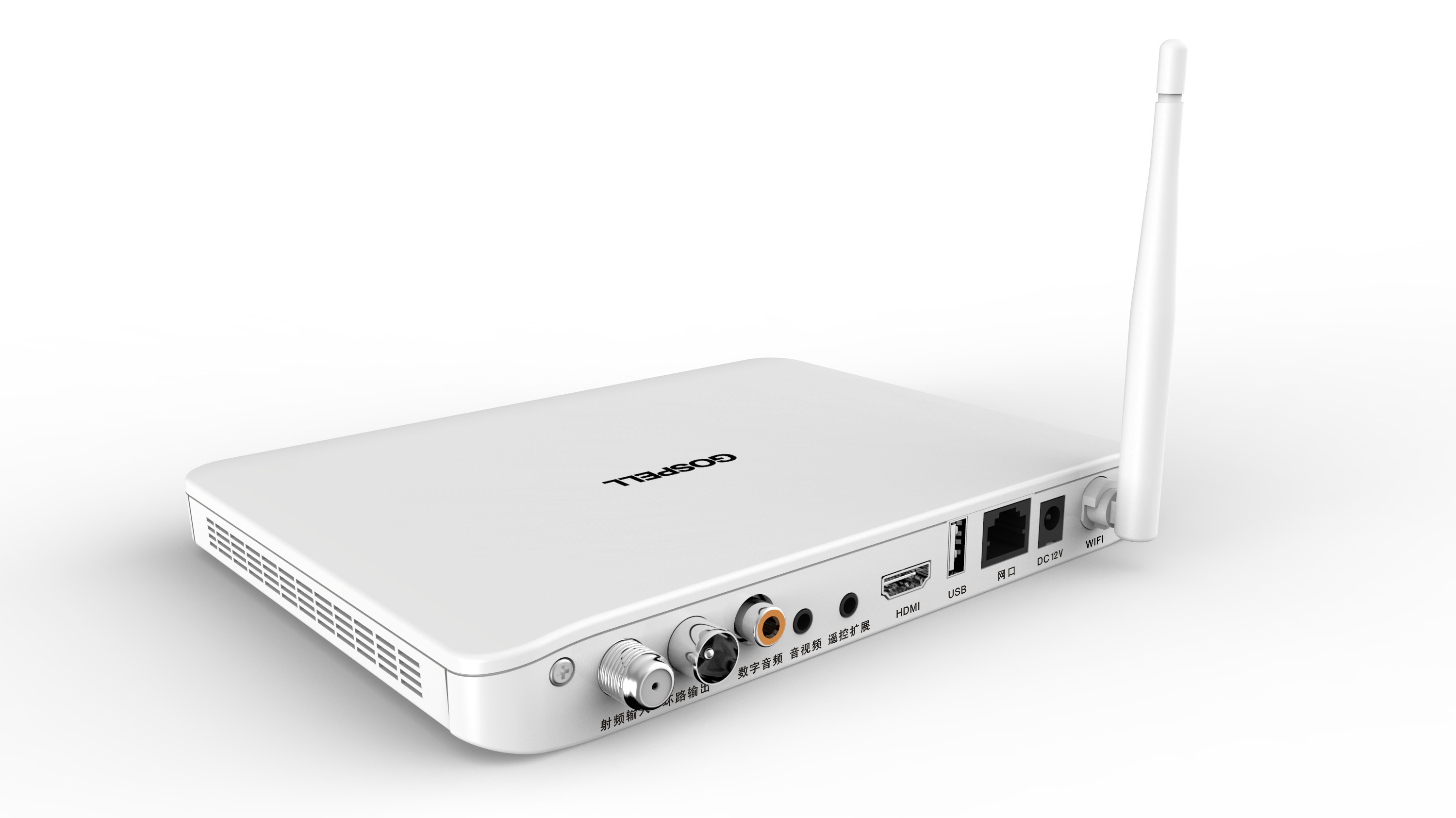

Rear Panel:

Technical specification:

    Chipset and Memory:

        CPU : 600MHz Hi3716MV300

        Flash: 16Gbit

        RAM: DDR3-4Gbit

    Power:

        Input power: DC12V 1.2A

        Maximum power consumption: 9W

        Standby power: ≤ 1W

    Interface

        RF signal input: x1

        RF signal loop out: x1

        Video output: RCA x1

        HDMI:x 1

        RS232:x1

        IR:x1

        Audio output: Stereo RCA x1

        Digital Audio output S/PDIF: COAXIAL x1

        USB2.0 port for External USB PVR function: x2

        Ethernet:x1

    TUNER

        Tuner: DVB-C R820C2

        Receiving Frequency: 51～862MHz

        Input signal level: 36dBuV～100dBuV

        RF Loop out function

    Demodulation

        Compliant with: DVB-C

        Demodulation: 16QAM/32QAM/64QAM/128QAM/256QAM

        IF bandwidth: 8MHz
