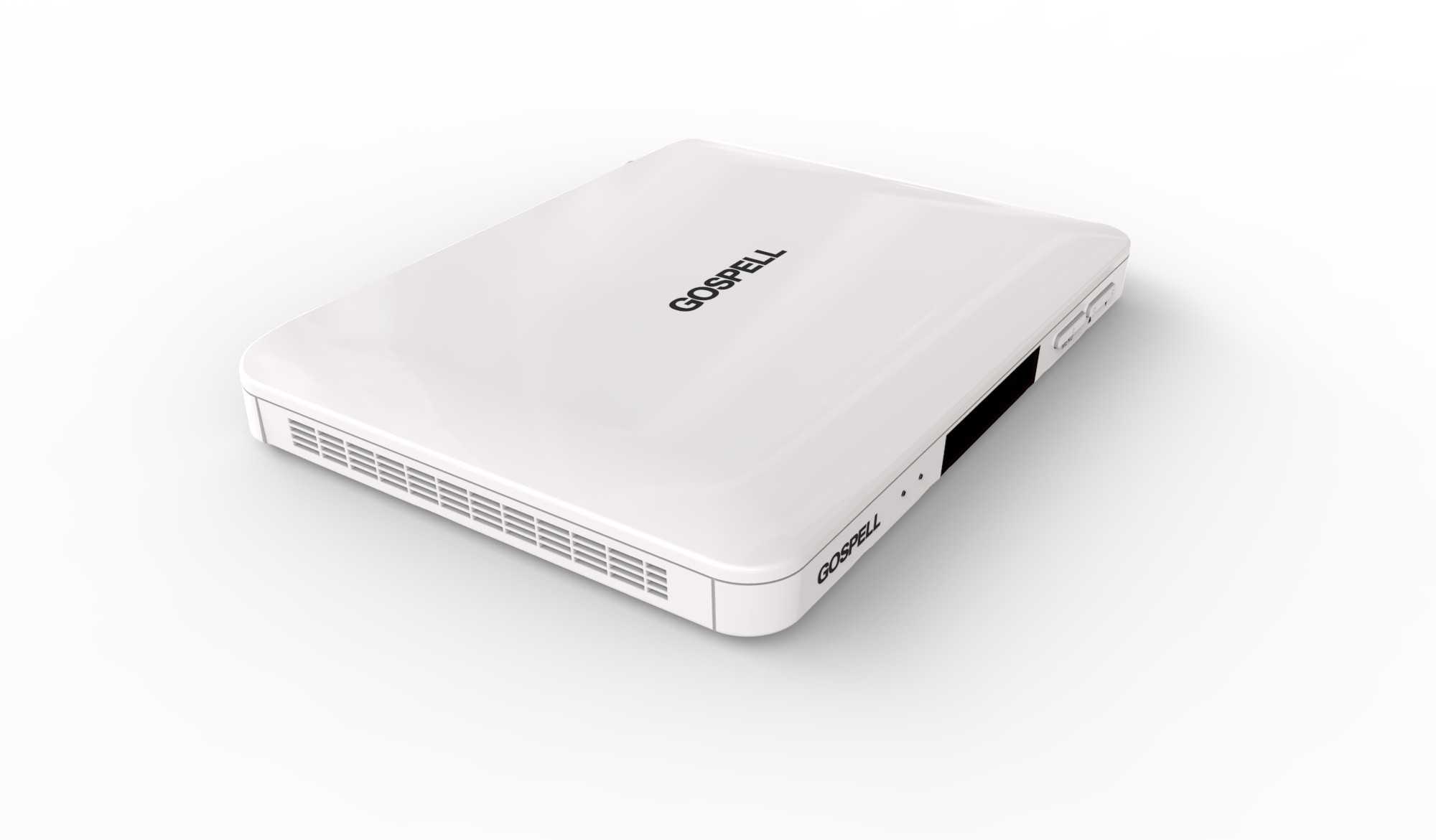

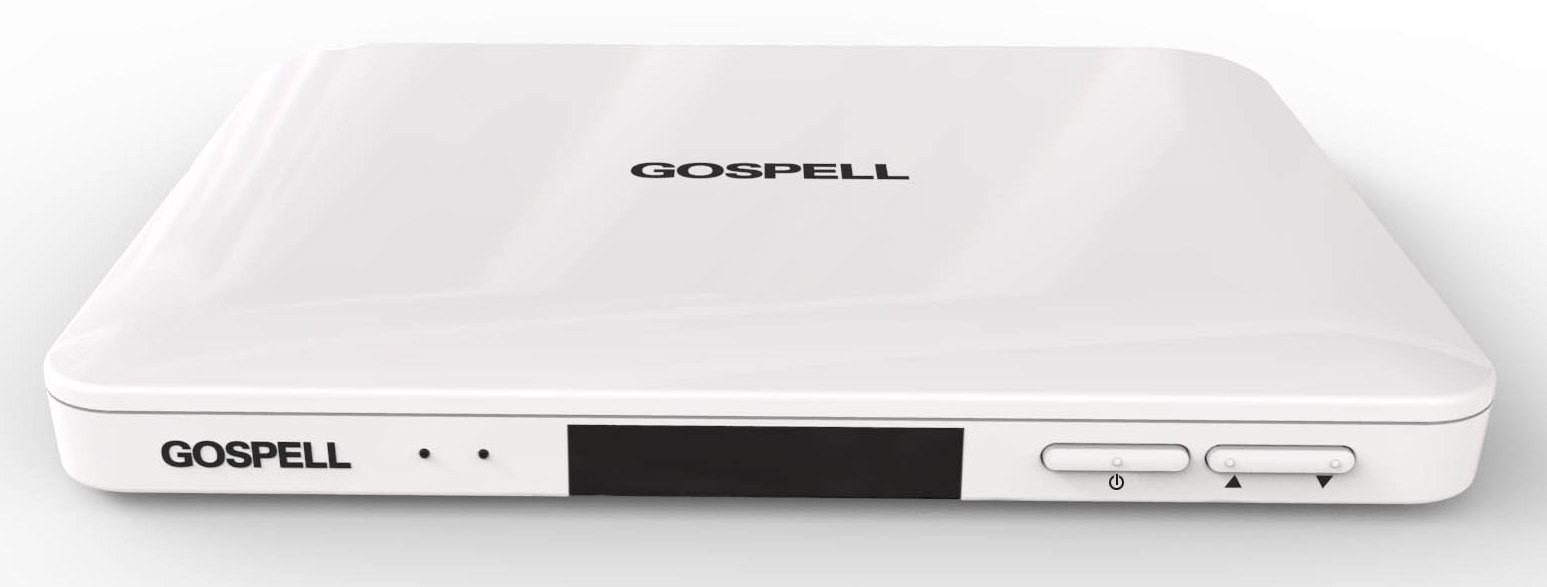

MPEG-2 / MPEG-4 DVB-S2 HD Television Set Top Boxes With Conax CAS

Minimum Order Quantity : 500pcs Delivery Time : Within 30 Days
Payment Terms : TT/LC Supply Ability : 100.000Pcs/Month
Place of Origin: CHENZHOU Brand Name: GOSPELL
Model Number: GSR-GK1951

Detail Information

High Light:

Television Set Top Boxes


android tv box

Product Description

DVB-S2 HD STB With Gospell/Conax CAS
Model No: GSR-GK1951

Main Features:

  • Fully compliant with DVB-S2 digital TV reception standards

    Supports HDTV / SDTV MPEG-2/MPEG-4/H.264 decoding

    Supports Multi CAS

    Supports 480i/480p/576i/576p/720p/1080i/1080P

    Convenient auto search function and blind search

    Intelligent graphical user interface design

    Capacity for storing up to 2000 transponders and 5000 channels

    Supports DVB-S/S2 digital TV signal modulated in QPSK/8PSK

    Input frequency range 950MHz-2150MHz

    Supports DiSEqc1.0/DiSEqc1.2/ DiSEqc1.3( USALS)

    Reception for SCPC/MCPC. C/Ku-Band reception

    Fast channel selection

    Favourite Channel Edit, parental lock

    Variable aspect ratio (4:3/16:9) 4:3 Pan & Scan or Letter Box modes

    Supports USB 2.0

    Supports USB2.0 PVR, Time Shift and Timer

    Supports Multimedia MP3, AVI,DAT,MKV,MP4,VOB,WMA(Optional),BMP,JPG photo playback


Technical specification

  • Chipset and Memory:
    CPU: 550MHz
    Flash: 64Mbit
    RAM: DDR3-1Gbit/1066Mbps



    Input power:AC90~250V 50/60Hz

    Maximum Power consumption: ≤15W

    Standby power: ≤1W

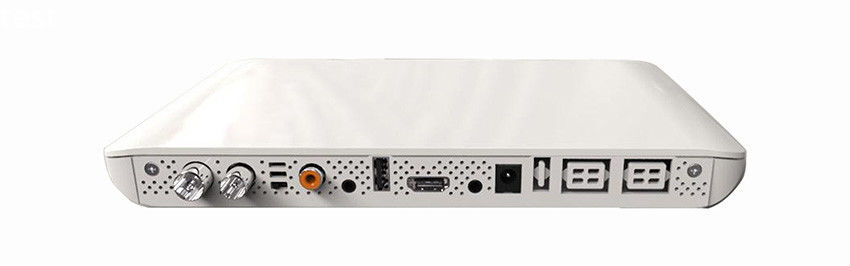

    RF signal input: : x1
    RF signal loop out: x1
    Video output: RCA x1
    HDMI: x 1
    Scart: x1
    Audio output: Stereo RCA x1
    Digital Audio output(S/PDIF): COAXIAL x1
    USB2.0 port(for External USB PVR function): x1


    Tuner: AV2012
    Receiving Frequency: 950~2150MHz
    Input signal level: -25dBm~ -65dBm(75ohm)
    LNB Control: DiSEqC1.0/DiSEqC1.2/ DiSEqC1.3/22KHz
    LNB Power: 13V/18V(Max 350mA)


    Demodulation: QPSK(SCPC/MCPC)/8PSK
    Symbol rate: 1.5~45MSPS
