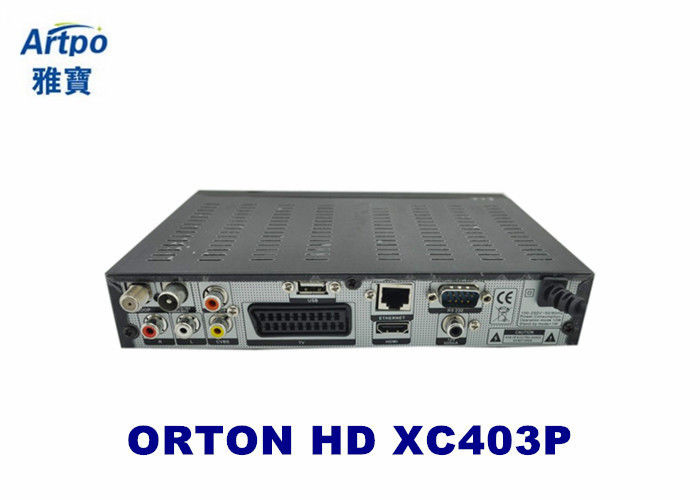

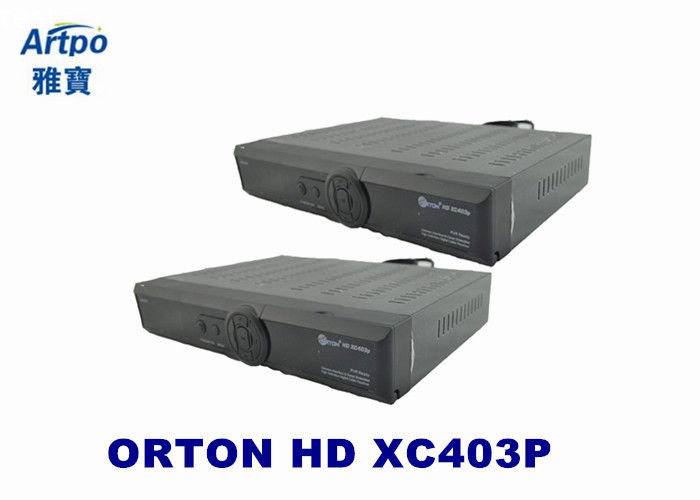

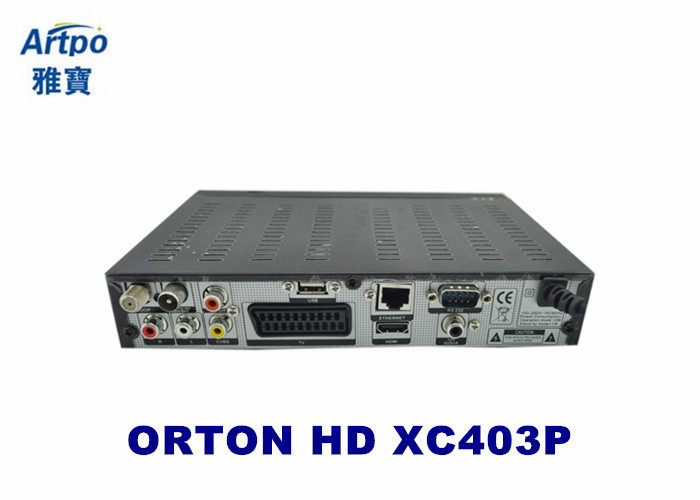

ORTON HD XC403P DVB-C Digital Cable Receiver with OSD + MPEG4 , EPG + USB PVR

Minimum Order Quantity : 1000 Price : Nogatiation
Packaging Details : Gift Box Delivery Time : 25 working days after received your payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 10,000,000pcs per month
Place of Origin: Shenzhen,China Brand Name: ORTON
Certification: CE/CCC/RoHs Model Number: X403P-C

Detail Information

Solution: Ali 3602 CI: Yes
CA: YES High Definition: Full 1080p
Type: DVB-C Receiver USB PVR Function: Support
High Light:

digital cable receiver box


hd dvb-c receiver

Product Description

 ORTON HD XC403P  DVB-C Digital Cable Reciver with OSD + MPEG4 , EPG + USB PVR​






♦  Lan Connector(Ethernet)
♦ 1CI for CAM Modules
♦ 1 CA (Conax embedded)
♦ HDMI, USB2.0
♦ Ali 3602 Solution




1. Main features:


MPEG2 SD, MPEG4 HD, H.264/AVC SD, H.264/AVC HD.


Fully DVB-C Compliant with HD/SD.


Network Application for Youtube, Youporn, RSS Reader and Newcamd, Cccam.


USB Wifi Dongle Support.


Firmware Upgrade by USB.


USB PVR Support.


9000 Channels TV and Radio Programmable.


Fully Support to 7 days Electronic Program Guide (EPG). Parental Control for Channels.


Easy to use Menu System.


Automatic save for last Channel and Menu.


Dual display- HD and SD simultaneous.


Low Power standby support, Save Energy.



2. System & Memory:


Main Processor  ALI3606


Flash Memory  8Mbytes


DDR II Memory   1G bytes


Channel Capacity  Digital Channel:8,000


Front   1-Key(Power), 7-SEGMENT DISPLAY


3. A/V & Date In/Out:


HDMI   AV out


Data Interface    Bit Rate: 115,200baud


Connector: 9-pin D-sub Male type


- USB : USB 2.0, Type A Connector


4. Power Supply:


l Input Voltage   AC 100V ~ 240V, 50Hz ~ 60Hz


l Power   AC 100V ~ 240V


5. Physical Specification:


Carton SIZE :50*33*26CM


G W  :14.5KG  12pcs/ CTN


6. Environmental Condition:


Operating Temperature  0 °C ~ 40 °C


Storage Temperature  -10 °C ~ 50 °C


Operating Humidity Range  10~85% RH, Non-condensing


Storage Humidity Range  5~90% RH, Non-condensing




Orton 403p plus HD cable receiver:




1 × User Manual


1 ×403 HD PVR satellite receiver


1 × Remote Control


1 × AV cable




ORTON HD XC403P DVB-C Digital Cable Receiver with OSD + MPEG4 , EPG + USB PVR 0
