Italia France 512M DDR2 DVB-T2 Digital Set-top Box / Digital Television Receiver

Minimum Order Quantity : 1000 PCS Packaging Details : Color Box
Delivery Time : 25 Working Days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 30000 PCS Per Month
Place of Origin: China Brand Name: VATTEK
Certification: CE RoHs Model Number: T1683

Detail Information

CPU: T701 Memory: 512M DDR2
Demodulator: CPU Internal Tuner: MXL608
HDMI: HDMI 1.3 Power: DC12V/2A
High Light:

dvb-t2 digital set-top box


terrestrial digital tv receiver

Product Description

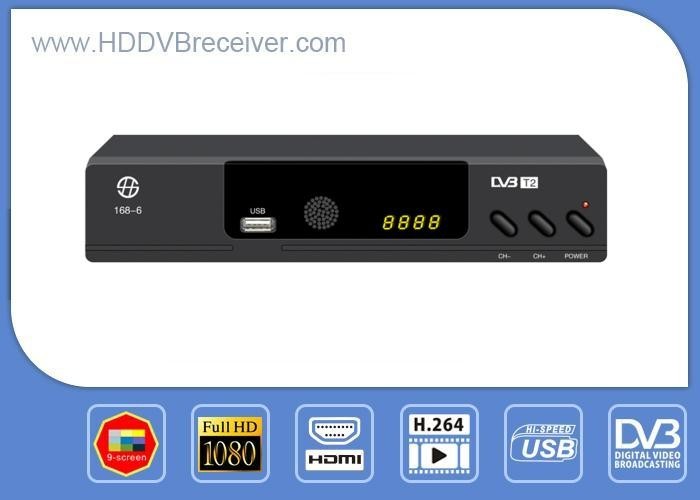

HD, DVB T2 Terrestrial Digital Receiver 1080P, MPEG4, USB PVR


T2168 Model is DVB T2 solution.  It's full function and high cost-performance.

DVB T2 support USB PVR 1080P adopted DC power supply DC 12V /2A. One way IR, one USB 2.0 port.


CPU MSDT701 Dolby option
Memory 512M DDR2
Demodulator CPU internal DVB-T/T2
Tuner MXL608
HDMI Output One HDMI1.3 Support HDCPkey
YPbPr Output one YPbPr output
CVBS Output one cvbs output
Audio Output one audio L/R output
RF input One RF input Connector option
Antenna power DC 5V power supply support short circuit protection
Power input DC5V/2A Power supply
USB port one USB 2.0 Host port support Hard disk external
Programs edit support program lock, move, jump, rename.
Support LCN off/on support channels' number on/off
Display mode support 16:9/4:3 mode
Display resolution support 1920x1080p, 1920x1080i, 1280x720p...
Auto search Auto search programs
Manual search Manual search programs
Antenna power control Power supply on/off
RF setup CH3:61.25MHz, CH4:67.25MHz, LoopThrough Option
OSD language Support Multi-languages
Teletext support OSD Subtitle
Timeshift support Timeshift
Timer support power off and power on
Recoding support programs recording and walk recording
Child lock support child lock, set password.
RS-232 support update through RS 232 port
Update via USB support update software via USB customized
Auto update via USB support auto update when power on customized
OAD streaming update support TS streaming convert , signal update customized
Audio decording support MP3, WAV, AAC, OGG
Video decording support MPEG1, MPEG2, MPEG4, H.264
Audio format MPEG-1, MPEG-2, MP3, WMA, AAC-LC, HE-AAC 5.1,AC-3, E-AC-3, RA8-LBR
Picture format JPEG, BMP, PNG
System NTFS, FAT32, FTA16 Not support NTFS compressed file
DVD OSD language chinese, english, German, Italia, france, spain, portugal, russia...
Game support support 8bit/32bit game function
Child lock support parent lock customized
Laser head option HD65, Sanya850, samsungDL6 fv8, etc
Video output HDMI, CVBS,YUV..
Audio 2.1 Audio , 5.1 Audio
MIC Supported customized
