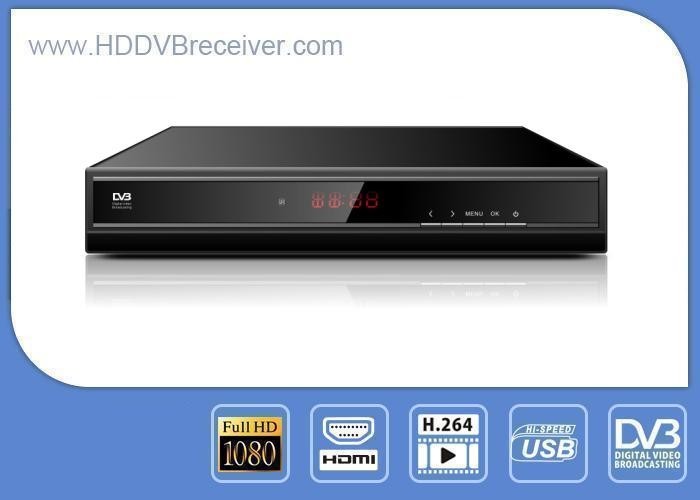

Black Metal Case HD DVB T2 + S2 Combo Receiver Linux System MPEG-2

Product Description

Black Color Metal Case HD DVB S2 + T2 Digital Combo Receiver MPEG4 1080P Software Support BISS & CW

DVB-T2 Demodulation

Terrestrial Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)

Input RF Frequency 48~866MHZ
Bandwidth: 6MHz, 7MHz, 8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5, 2/3, 3/4,4/5,5/6
Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/ 8K/32K
Support Single and multiple PLPS
Input level -83~ -5dBm

DVB-S2 Channel Decoder

Frequency Range: 950MHz-2150MHz
Sensitivity Level:  - 10~ - 81dBm
Mode IFFT  2k,8k
FEC Mode : 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals : 1/4,1/8,1/16,1/32
Constellation : QPSK,8PSK,16APSK
Neighboring channels : immunity and Protection
According to ETSI TR 101 190 V1.2.1
Active Ant Power : 13/18V DC @ 500mA MAX, Overload Protection
Software Features
• Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard
• Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
• Support BISS KEY
• Supports single / multiple or blind search satellite search
• DiSEqC 1.0 / 1.1 / 1.2
• The maximum speed of the traffic flow of at least 50 Mbit / sec
• Support 3D interface
• Sleep Timer
• Support teletext/subtitle/muti-language
• Powerful and highly effective 7-day EPG function
• AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
• USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
• Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder Video Decoder
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-channels decoding
Powerful Multimedia Features
Media format:  avi. Mpg, .dat, .vob, .div, .mov, mkv, jpeg, ts etc
Audio format:  WMA , MP3 , AAC (wma , mp3 , m4a)
Photo format:  JPEG, BMP, PNG

License

Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
Loading
Machine size: 220*150*40mm

OSD menu show T2 and S2 programs searching function.

BISS & CW Patch function show in menu.
