Linux SMP8634LF MIPS-CPU DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 10 pcs/carton Delivery Time : 7-25 days
Payment Terms : TT, western Union, Paypal, Money Gram Supply Ability : 60,000 pcs/Month
Place of Origin: China Brand Name: Ultra
Certification: CE Model Number: AZ box

Detail Information

High Light:

mpeg4 set top box


mpeg-2 set top box

Product Description



Model No.: AZ BOX Ultra HD Satellite Receiver support CA, CI, Internet Sharing(LAN), USB PVR, YOUTUBE



AZ Box ULTRA HD is a receiver with a Satellite tuner (DVB-S2). It comes with fully covered Multimedia module, where you can easily playback any Video and Audio files such as XviD, MPEG2/4 and MKV files, and also most common audio files. Enjoy Internet freedom with our Internet Browser and YouTube player, and keep in touch with latest news and headlines with our RSS reader.


It support the following function: Blind Scan, File Browser, TV/ Radio Reception

Web Browser, Media Player, YouTube Player, Full High Definition format 1080P:

RSS Reader, Advanced Electronic Program Guide (EPG), FTP Client, Support for a wide range of encryption systems, Connectivity, IPTV, Recording and Time Shift.

Optional HDD (Hard Drive) for PVR Functions:

You can select an internal Hard Drive from the drop down menu below. The HDD you select will be fitted and tested in store before dispatch.
We only supply Wester Digital and SeaGate best SATA II Hard Drives

The AzBox is also compatible with USB HDD if you have one (instead of internal HDD)


Technical Specifications:


Operating System Linux
Processor (CPU) Sigma Designs SMP8634LF MIPS-CPU 300MHz
Working Memory DDR 128 MB
Video Memory DDR 128 MB
Tuner Embedded 1xDVB-S2 tuner (for Satellite)
DiSEqC 1.0, 1.1, 1.2, 1.3, USALS
Flash Memory 8MB, SSD (DOM) 256 MB
HDD Internal HDD 2,5” or 3,5” and USB HDD (optional)
Video Output PAL / NTSC
Video Containers MPEG1/2/4 (M1V, M2V, M4V); MPEG1/2 PS (M2P, MPG); MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS), VOB, AVI, ASF, WMV, IFO, ISO; Matroska (MKV), MOV (H.264), MP4, RMP4
Video Codecs XVID SD/HD; MPEG-1; MPEG-2: MP HL; MPEG-4.2: ASP L5, 720p, 1-point GMC; WMV9: MP HL; H.264: BP L3; H.264:MP L4.0;H.264:HP L4.0;H.264:HP L4.1;VC-1:MP HL; VC-1: AP L3
Audio Containers AAC, M4A, MPEG audio (MP1, MP2, MP3, MPA), WAV, WMA, FLAC, OGG
Audio Codecs AAC, AAC+, Dolby Digital, DTS, WMA, WMA Pro, MP1, MP2, MP3,LPCM, FLAC, Vorbis, DTS (Audio Passthrough); Dolby Digital (Audio Passthrough)
Picture Support JPEG, BMP, GIF
Subtitle Supported SMI, SRT, TXT, SUB, SSA

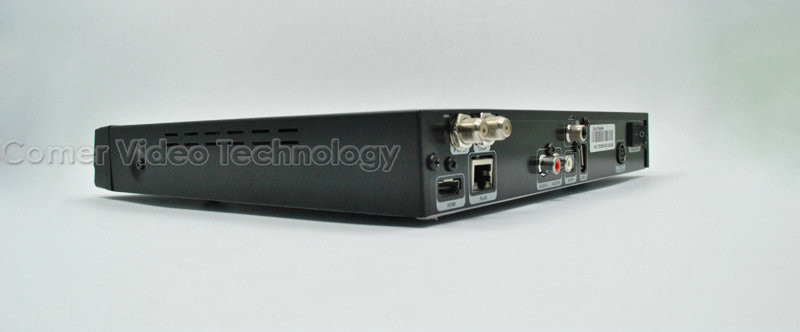

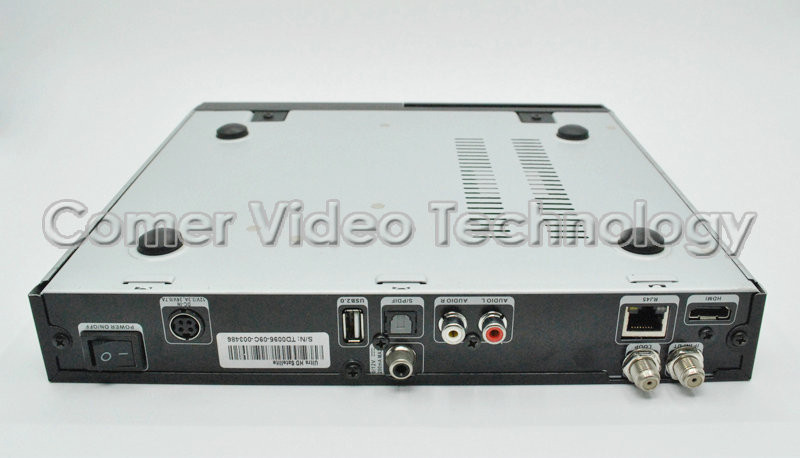

Rear Outputs / I/O 1x HDMI; 1x Component (YcbCr); 1x RCA Video; 1x RCA Audio (L/R);1x RJ45; 2x USB 2.0; 1x Optical S/PDIF; 1 x S-Video, DC12V IN
Resolution 576i (480i), 576p, (480p), 720p, 1080i, 1080p

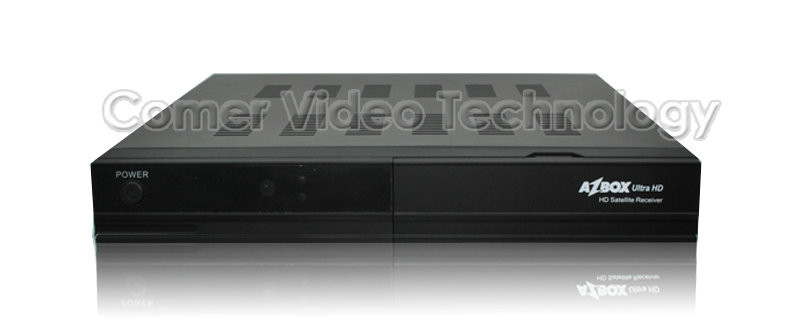

Front 1x Smartcard Reader; 1x USB 2.0; IR Modul; Buttons: Power, CH+, CH-, Vol+, Vol-, OK
Ethernet 10/100 Base-T Ethernet (max.100Mbit/s)
Dimentions 280x260x100mm



Linux SMP8634LF MIPS-CPU DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver 0

Linux SMP8634LF MIPS-CPU DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver 1

Linux SMP8634LF MIPS-CPU DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver 2
