Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box
Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box
Contact Now

Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box

Minimum Order Quantity : 10PCS Packaging Details : CARTON
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 100000PCS
Place of Origin: CHINA Brand Name: Dreambox
Certification: CE ROHS Model Number: dm500c

Detail Information
DVB-C: YES OS: LINUX
CA: SUPPORT MPEG2: SUPPORT
FTA: FREE TO AIR Processor: IBM
Highlight:

digital cable tv receiver

,

digital cable receiver box

Product Description

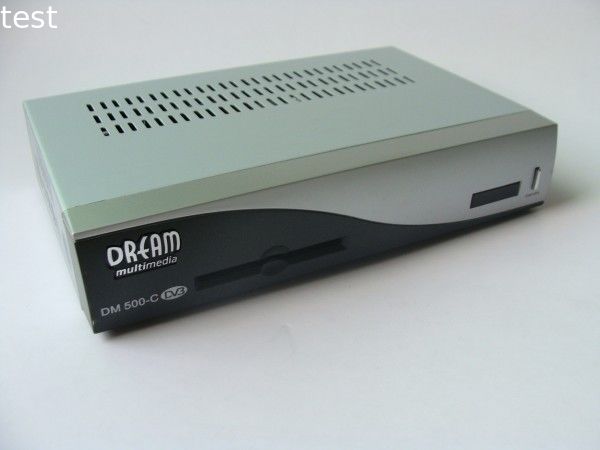

Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box



250 MHz IBM PowerPC Processor(350 MIPS)
Linux Operating System,Open Source
DreamCrypt CA integrated
1 * Smartcard-Reader
MPEG2 Hardware decoding(DVB compliant)
V.24 / RS232 connector
100Mbit voll duplex Ethernet lnterface
2 Status-LED
32 MByte RAM
Unlimited service list for TV/Radio
Switching services in less than a second





Main features



Fully automated service seraching / transponder scan
Bouquet list support
EPG-Suppoer(electronic program guide)
Multi language OSD with skin support
SPDI/F optical connector AC-3
1*Scart-Connector(comepletely software controlled)
external 12V power converter
A/V Output(Audio/Video Cinch)
Size:196mm*130mm*40mm(H*B*T)





--------------------------------------------------------------------------------------------
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G/25 Hz
Video Formats 4:3 /16:9
Footage 16:9,automatic assimilation for 16:9 TV-Device(over Scart)
Letterbox percolating for 4:3 TV-Device
--------------------------------------------------------------------------------------------
Audio decoder:
Audio compression MPEG-1 & MPEG-2 Layer I and II
Audio Mobe Dual(main/sub),Stereo
Frequency:32KHz,44.1KHz,48KHz,16KHz,22.05KHz,24KHz
--------------------------------------------------------------------------------------------
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60dB(1 KHz)
Crosstalk < -65 dB
--------------------------------------------------------------------------------------------
Ortput digital
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 KHz,44.1 KHz,48 KHZ
S/PDIF-Output optical(AC3)
--------------------------------------------------------------------------------------------
Output Video:
Output Level FBAS 1 Vss +/- 0.3dB on 75 Ohm
--------------------------------------------------------------------------------------------
TV-Scart:
Output:FBAS,RGB,S-VHS over OSD selectable
--------------------------------------------------------------------------------------------
Serial lnterface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming
--------------------------------------------------------------------------------------------
Ethernet:
100 Mbit compatible,bi-directional interface Function
Update of Firmware and Preprogramming
--------------------------------------------------------------------------------------------
Input voltage:
12V power converter 110-230V / 50-60Hz AC +/-15%
--------------------------------------------------------------------------------------------
Physical specification:
Ambient Temperature +15...+35
Humidity < 80%
Size(B*T*H):196mm*130mm*40mm
Weight:500g
--------------------------------------------------------------------------------------------
DM 500-C/T specific data
DVB-C/T Tuner:
Frequency Range 51...858 MHz
Input lmpedance 75 Ohm
Symbolrate 1 ... 6.9 Mbaud/s



Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box 0Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box 1Dreambox 500 dm500c DVB C Digital Cable Receiver Linux OS Smart Card Reader Set Top Box 2
