Digital Cable Receiver DVB-C Digital Receiver USB 2.0 full HD 1080p For PVR

Place of Origin: China Brand Name: Yaojin
Certification: CE/FCC Model Number: 14601

Detail Information

High Light:

satellite tv receiver

,

dvb-c set top box

Product Description

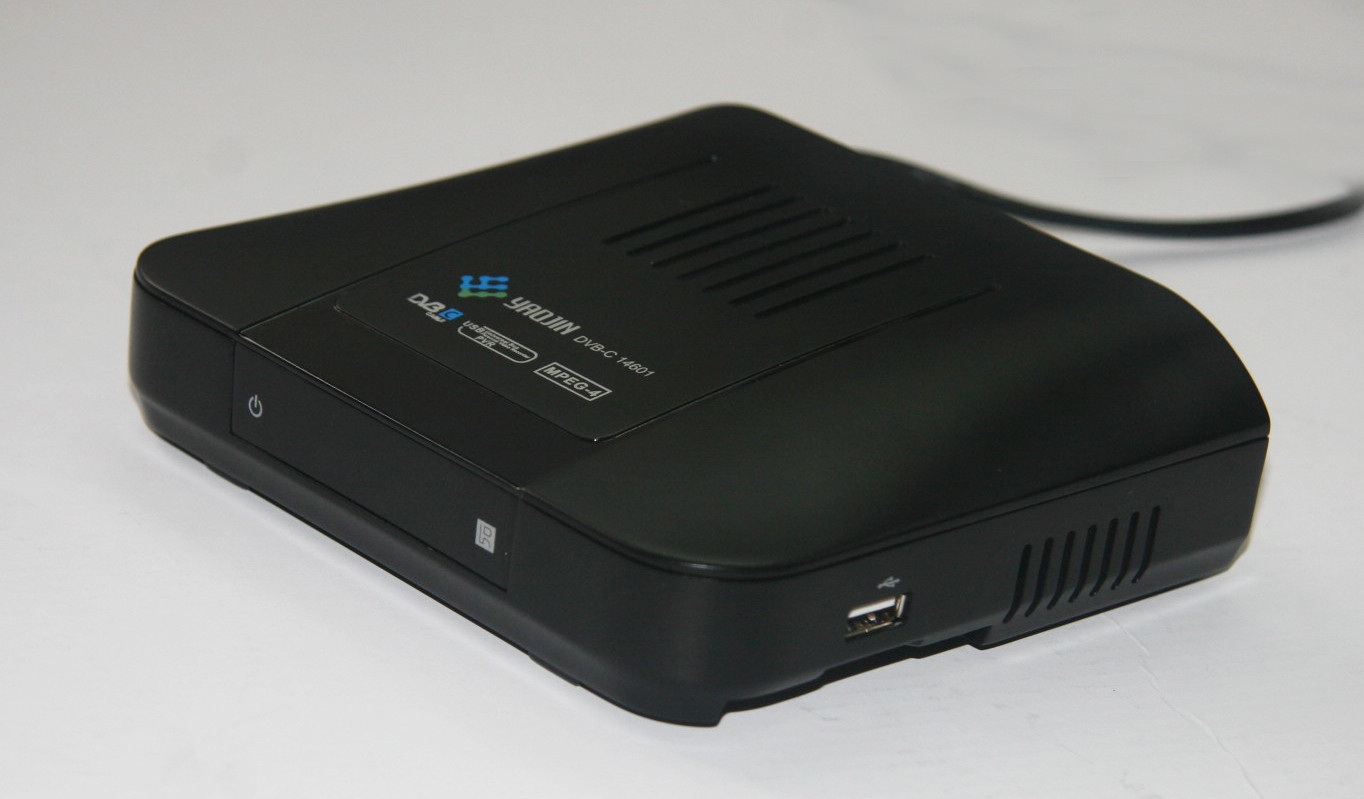

Digital Cable Receiver DVB-C Digital Receiver USB 2.0 full HD 1080p For PVR







DVB-CI,14601, DVB-C receiver , fully MPEG2 /MPEG4/H.264 high definition compliance, Powerful and highly effective 7-day EPG function







Description:



1. Fully SD/HD DVB-C compliant,support full HD 1080p

2.Support SD/HD MPEG2 and MPEG4 AVC H.264

3.Common Interface for various CAS modules

4.Auto and manually scan all available TV and radio channels

5.Powerful and highly effective 7-day EPG function

6.Multi-language menu,subtitle and audio output supported

7.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

8.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.

9.Support parental local and Teletext

10.Easy to use and attractive menu

11.Support various media files,including music,photo and movie files





Specifications:



Main System

Main Processor                                     MSTAR 7819 chipset

RF Input type                                      F-type connector

Input impedance                                   75Ω

Min signals level                                    -15 dBmV

Max signals level                                   20 dBmV

Input Frequency:                                   47MHz~862MHz

Bandwidth                                              8MHz

Catching Frequency                              ± 150KHz

Input reflection                                       ≥8

Decoding                                               16,32,64 , 128,256 QAM

Support scope                                       3.6 ~ 6.952 Mbaud

RF Output Type                                   IEC male plug, Loop through

Output impedance                                 75Ω

Audio DECODING

Decoding                                               MPEG 1/2/3, AC3, AAC

Audio output                                          Stereo, mono, dual, SPDIF optical digital output

PCM, LPCM, WMA, Mpeg 1/2 layer 1/2

Video DECODING

Transport Stream                                   ISO/IEC 13818-1 MPEG-2, H.264/MPEG-4 AVC

Profile Level                                          Up to H.264 HD, HP@L4.1, Up to MPEG-2 HD, MP@HL

Aspect Ratio                                         16:9 / 4:3 Letter-Box, Pan & Scan

Video Resolution                                   1920x1080p,1920x1080i, 1280x720p, 720x576p/i

Video Format                                         PAL,NTSC,SECAM(Option)

Video output standard                            Output Scope:1.0±0.05V Vp-p

A/V & Data In/Out

HDMI                                             HD digital display, multi format capable (1080P,1080I, 720P, 480P, 480I)

Y/Pb/Pr                                         Analog HD output

SCART                                         Video CVBS output, Audio L/R output

SPDIF                                           Digital audio output

USB                                              High-Speed USB 2.0 Port

Power Supply

Power input voltage                      DC 12V, 1A

Power Consumption                     10W max

Ambient (Optional)

Dimension                                      220(W)×160(D)×38(H)mm

Weight (Net)                                   1.5Kg

Shipping Info                                   5760sets / 20’ container
