1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver

Good Quality 1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver Sales

Large Image :  1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver

Comer Video Technology Co., LTD

Verified Supplier

China

Business type: Manufacturer, Distributor/Wholesaler, Agent, Importer

Telephone : 86-755-27804276

602, NO. 260, Building A, Shangchuang 2nd, Bao An, Shenzhen

Product Details:

Place of Origin: China
Brand Name: Ultra
Certification: CE
Model Number: AZ box

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: 10 pcs/carton
Delivery Time: 7-25 days
Payment Terms: TT, western Union, Paypal, Money Gram
Supply Ability: 60,000 pcs/Month
Detailed Product Description



1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver





Main FEATURES

AZ Box ULTRA HD is a receiver with a Satellite tuner (DVB-S2). It comes with fully covered Multimedia module, where you can easily playback any Video and Audio files such as XviD, MPEG2/4 and MKV files, and also most common audio files. Enjoy Internet freedom with our Internet Browser and YouTube player, and keep in touch with latest news and headlines with our RSS reader.



It support the following function: Blind Scan, File Browser, TV/ Radio Reception

Web Browser, Media Player, YouTube Player, Full High Definition format 1080P:

RSS Reader, Advanced Electronic Program Guide (EPG), FTP Client, Support for a wide range of encryption systems, Connectivity, IPTV, Recording and Time Shift.

Optional HDD (Hard Drive) for PVR Functions:

You can select an internal Hard Drive from the drop down menu below. The HDD you select will be fitted and tested in store before dispatch.
We only supply Wester Digital and SeaGate best SATA II Hard Drives

The AzBox is also compatible with USB HDD if you have one (instead of internal HDD)



Technical Specifications

Operating System Linux
Processor (CPU) Sigma Designs SMP8634LF MIPS-CPU 300MHz
Working Memory DDR 128 MB
Video Memory DDR 128 MB
Tuner Embedded 1xDVB-S2 tuner (for Satellite)
DiSEqC 1.0, 1.1, 1.2, 1.3, USALS
Flash Memory 8MB, SSD (DOM) 256 MB
HDD Internal HDD 2,5” or 3,5” and USB HDD (optional)
Video Output PAL / NTSC
Video Containers MPEG1/2/4 (M1V, M2V, M4V); MPEG1/2 PS (M2P, MPG); MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS), VOB, AVI, ASF, WMV, IFO, ISO; Matroska (MKV), MOV (H.264), MP4, RMP4
Video Codecs XVID SD/HD; MPEG-1; MPEG-2: MP HL; MPEG-4.2: ASP L5, 720p, 1-point GMC; WMV9: MP HL; H.264: BP L3; H.264:MP L4.0;H.264:HP L4.0;H.264:HP L4.1;VC-1:MP HL; VC-1: AP L3
Audio Containers AAC, M4A, MPEG audio (MP1, MP2, MP3, MPA), WAV, WMA, FLAC, OGG
Audio Codecs AAC, AAC+, Dolby Digital, DTS, WMA, WMA Pro, MP1, MP2, MP3,LPCM, FLAC, Vorbis, DTS (Audio Passthrough); Dolby Digital (Audio Passthrough)
Picture Support JPEG, BMP, GIF
Subtitle Supported SMI, SRT, TXT, SUB, SSA

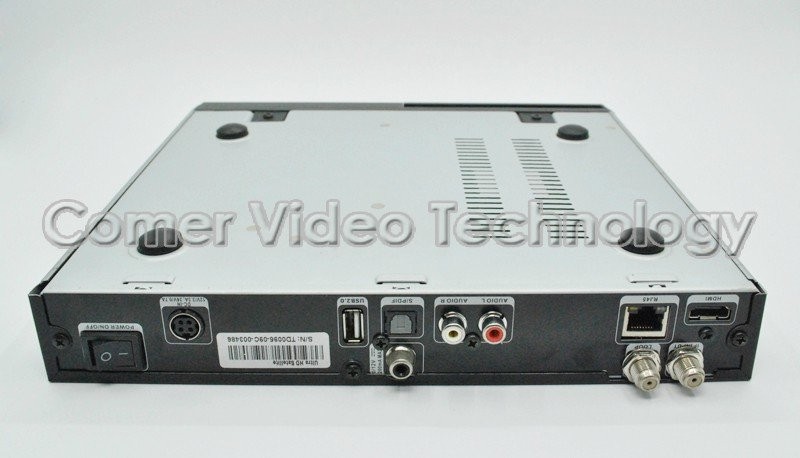

Rear Outputs / I/O 1x HDMI; 1x Component (YcbCr); 1x RCA Video; 1x RCA Audio (L/R);1x RJ45; 2x USB 2.0; 1x Optical S/PDIF; 1 x S-Video, DC12V IN
Resolution 576i (480i), 576p, (480p), 720p, 1080i, 1080p

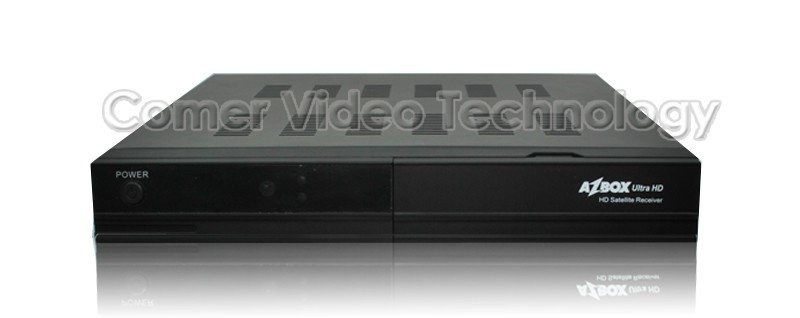

Front 1x Smartcard Reader; 1x USB 2.0; IR Modul; Buttons: Power, CH+, CH-, Vol+, Vol-, OK
Ethernet 10/100 Base-T Ethernet (max.100Mbit/s)
Dimentions 280x260x100mm



Picture :

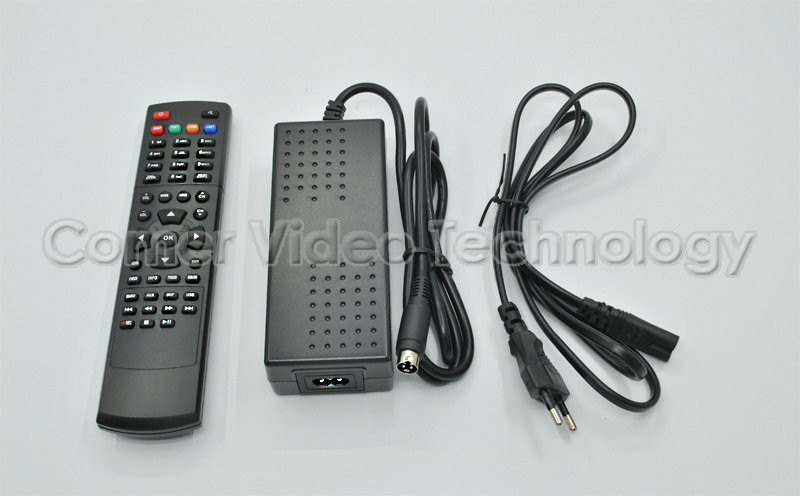

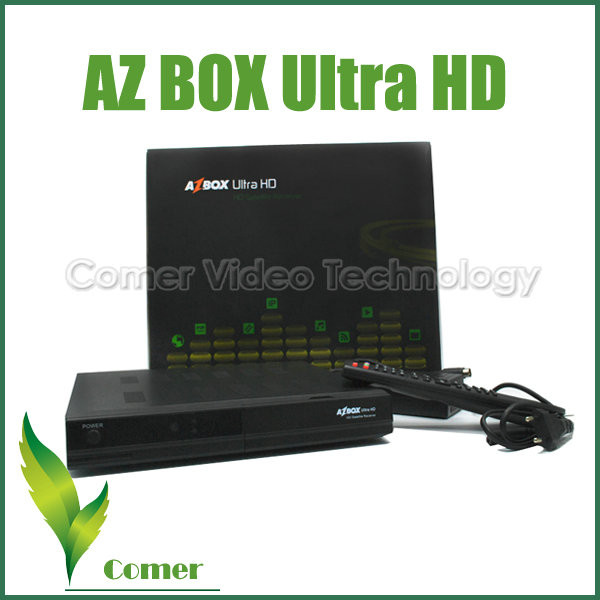

1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver

1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver

1080P MPEG2/4 DVB-S2 Set Top Box AZ BOX ULTRA HD Satellite Receiver
