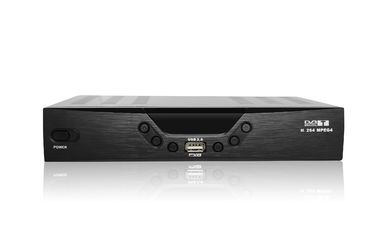

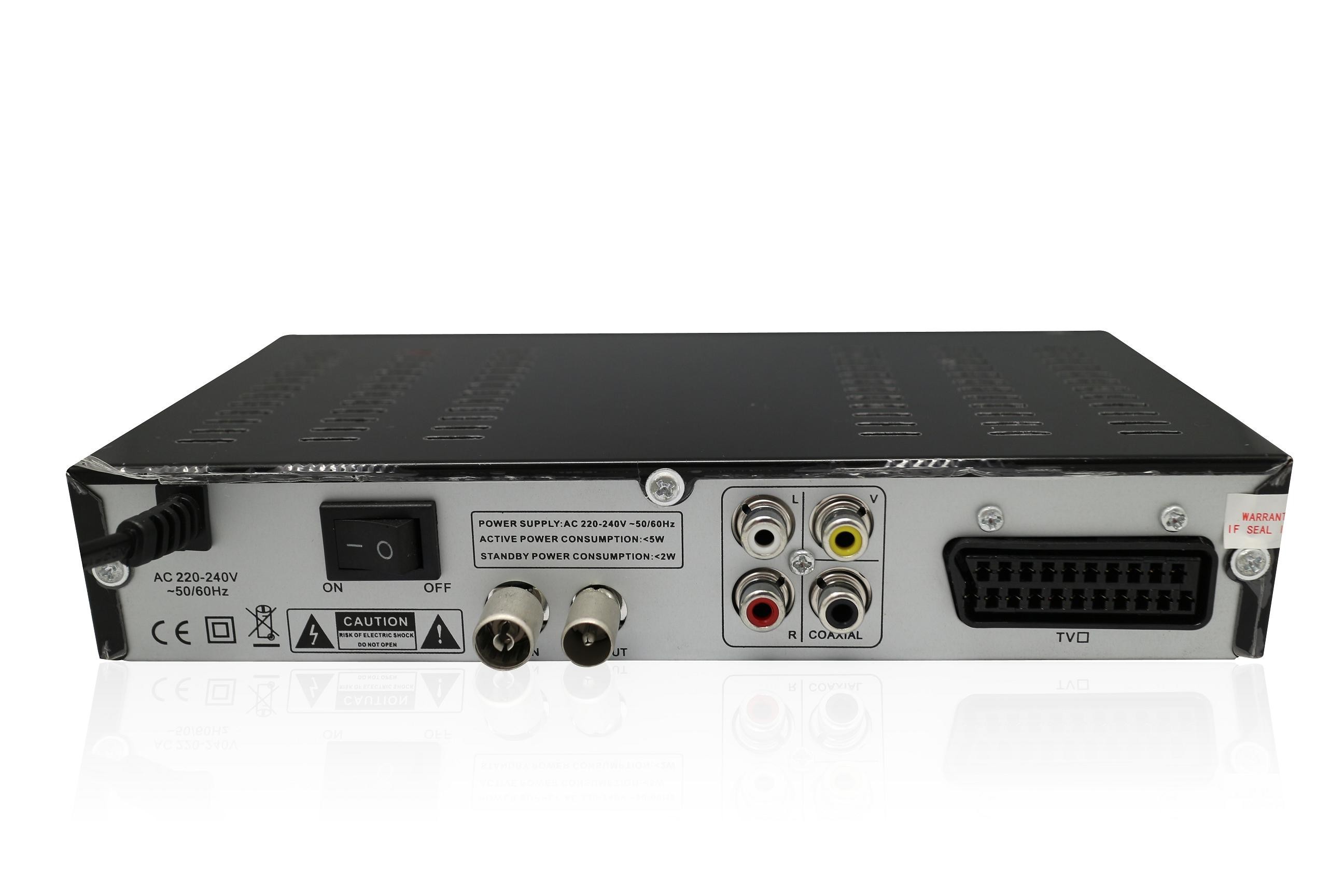

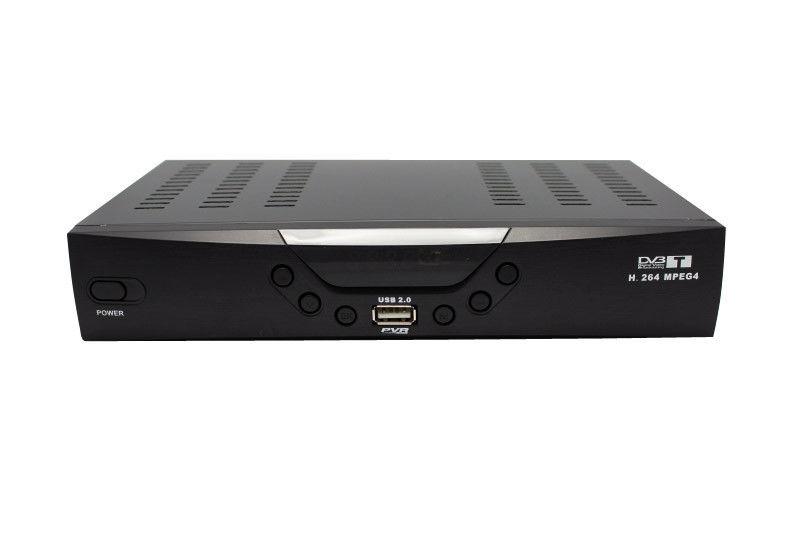

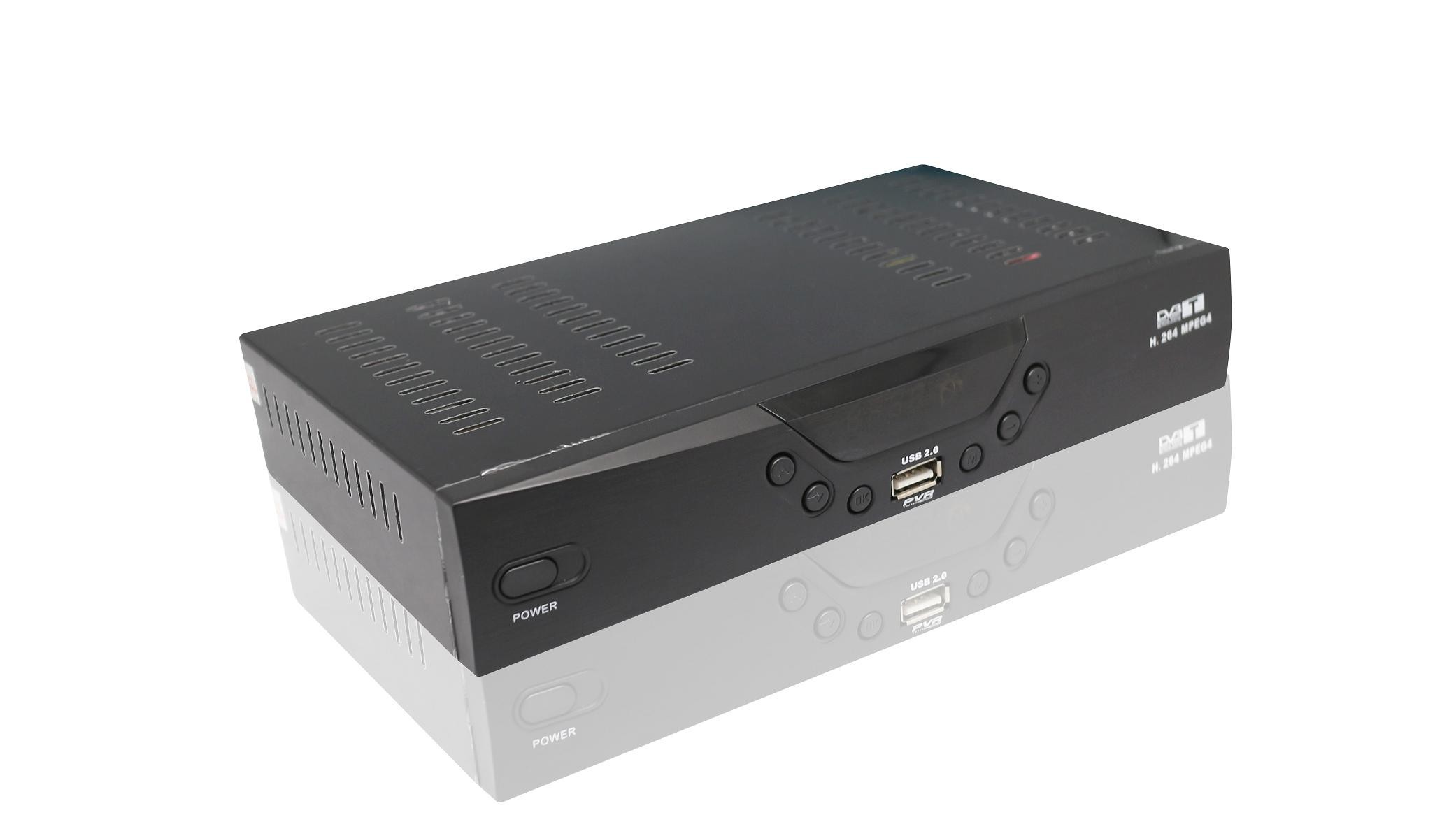

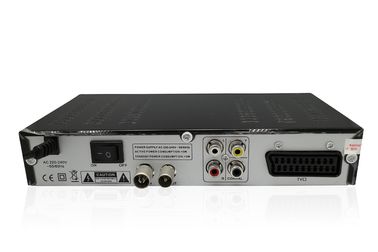

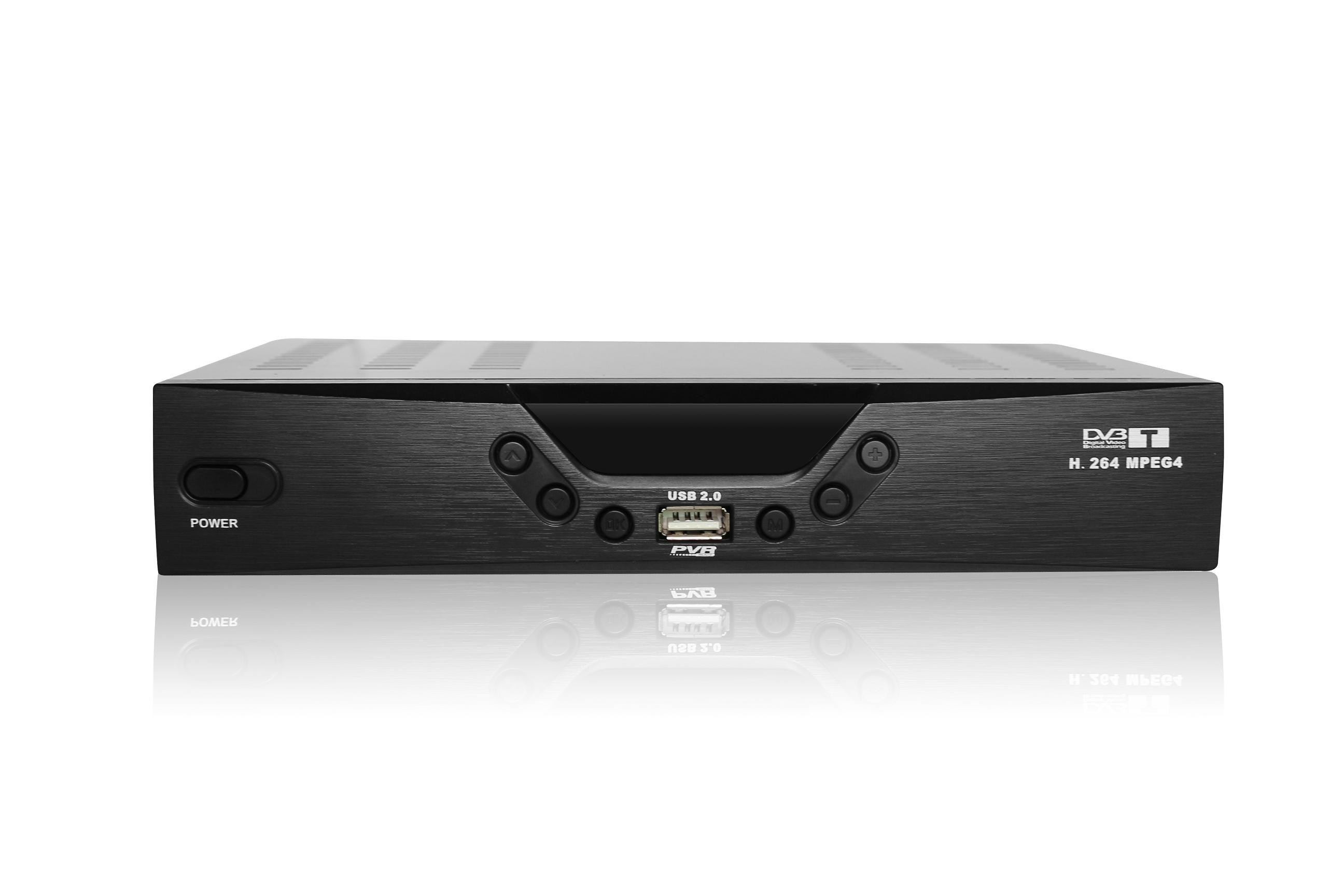

Ali 3510 Full HD MPEG-4 TV DVB-S2 Android TV Box / Set Top Box Digital Satellite Receiver

Minimum Order Quantity : 500pcs Price : negotiation
Packaging Details : Gift box package Delivery Time : 10 working days after received your payment
Payment Terms : T/T or western Union or Paypal Supply Ability : 3,000pcs per month
Place of Origin : China Brand Name : OEM
Certification : CE/ROHS Model Number : RS-8802S2

Detail Information

Product Name: DVB-8802S2Box Type: Digital
USB Port: USB2.0 Host MPEG-4: Yes
Multi-PLP: Support Brand Name: OEM
Resolution: 1080P Material: Metal Case
JPEG BMP GIF: Support Hi Difinition: Yes

Product Description



Ali 3510 full hd digital tv DVB-S2  set top box digital satellite tv receiver







Specifications:


Hardware
CPU ALI3510  Embedded  Demodulator
Memory 32X16Mbit  DDR2 Frequency1066
Flash 32M bytes
TUNER AV2018
USB 2.0 Embedded One Host,
Front Panel 4-digit LED display on front panel
red LED Standby,green  LED Lock
Front Panel key(MEN,CH+,CH-,VOL+,VOL-,OK,POWER)Optional
Rear Panel Tuner RF input connector   IEC60169-2/T-TYPE 75Ohm Unbalanced
HDMI V1.3
AV RCA x1
Coaxial x1
Power  AC100~240V  50Hz/60Hz
Channel Decoder
Demodulation Frequency Range 950MHz-2150MHz
Sensitivity  Level  - 10~ - 81dBm
Mode IFFT 2k,8k
FEC Mode 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals 1/4,1/8,1/16,1/32
Constellation QPSK,8PSK,16APSK
Neighboring channels
immunity and  Protection
According to ETSI TR 101 190 V1.2.1
Active Ant Power 13/18V DC @ 500mA MAX,Overload Protection
Sortware Features
Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
Supports single / multiple or  blind search satellite search
Automatic PAL/NTSC conversion
DiSEqC 1.0 / 1.1 / 1.2/1.3
Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Support  BISS KEY
Support teletext/subtitle/muti-language

Powerful and highly effective 7-day EPG function
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Decoder
Video Decoder Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding  HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features

MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec  WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec JPEG, BMP, PNG

  License
Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License.
Accessories
Accessories gift box
AV cable optional
HDMI cable optional
IR remote control
User Manual



Description:

1.DVB-S&DVB-S2 Compliant.

2.MPEG-2 MP@HL video decoder.

3.AVC/H.264  HP@L 4.1 video decoder.

4.MPEG4 ASP supported.

5.Fully compliant with HDMI1.3 specification.

6.Video Resolution:1080p,1080i,720p,720i,576p,576i.

7.USB2.0 for PVR,Time-shift and timer.

8.Support MP3/WMA,AVI/MK/MP4...,BMP/JPG playback.

9.Blind scan,Sat scan,TP scan,NIT scan.

10.Max 2000 TP and 4000 Programs restore.

11.DiSEqc1.0/DiSEqc1.2/DiSEqc1.3(USALS).

12.Support 7-day EPG,Teletext and Subtitle.

13.Parental lock,Channel Edit,Favor edit.

14.OTA,RS232,USB upgrade.





Interface

   ANT IN x1,Audiox2,SPDIF digital output-

   RCA,CVBSx1,Audiox2,SPDIF digital output

   HDMI1.3x1

   USB2.0 portx2 (only for USB disk)

   RS232 DB9M



Video Decoding

   Compliant with:MPEG-4 part10/MPEG-2 ISO/IEC 13818,

   MPEG-4 Simple/Main/Advanced Profile @  Level(10 Mbps),

   MPEG-2 Main Profile  Main @ Level(15 Mbps),

   H.264 MP  @L L3(10 Mbps),H.264 HP @L4.1 (25 Mbps)

   Video Resolution:1080p,1080i,720p,720i,576p,576i



Audio Decoding

       Compliant with:MPEG-1/2/3,AC-3,KE AAC (optional)

       Support Dolby down-mixed 2 channel (optional)

Ali 3510 Full HD MPEG-4 TV DVB-S2 Android TV Box / Set Top Box Digital Satellite Receiver
