Outdoor Two - In - One EOC Master with In-built EOC and ONU Module for Multicast Technology , GDOU2040N

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

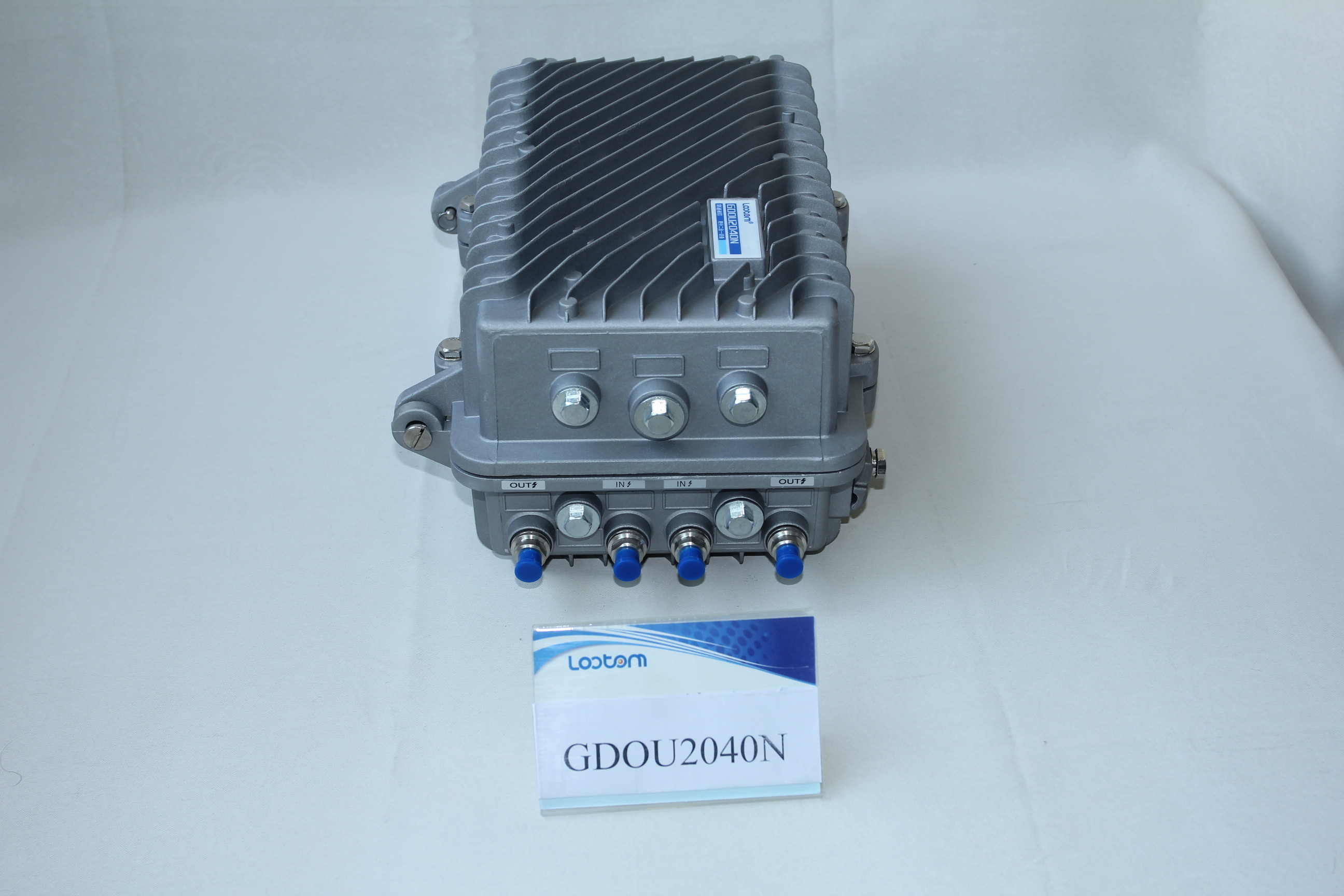

Outdoor Two - In - One EOC Master with In-built EOC and ONU Module for Multicast Technology , GDOU2040N

Good Quality Outdoor Two - In - One EOC Master with In-built EOC and ONU Module for Multicast Technology , GDOU2040N Sales

Large Image :  Outdoor Two - In - One EOC Master with In-built EOC and ONU Module for Multicast Technology , GDOU2040N

Lootom Telcovideo Network(wuxi) Co., Ltd

Verified Supplier

China

Business type: Manufacturer, Exporter

Telephone : 0086-510-85168151

5F,9 Building 100# DiCui Road,Wuxi,Jiangsu,China

Product Details:

Place of Origin: China
Brand Name: LOOTOM
Certification: CE,ROHS
Model Number: GDOU2040N

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 5-10 days
Payment Terms: L/C,T/T,PAYPAL
Supply Ability: 50 Piece/Pieces per Month
Detailed Product Description
EOC Module: 1,2,3,4 ONU Module: 1
Power Supply: 60V Or 220V Usage: Outdoor
EOC Standard: IEEE P1901/HomePlug AV Uplink: ETH/GPON/EPON



Outdoor Two - In - One EOC Master with In-built EOC and ONU Module for Multicast Technology


Overview

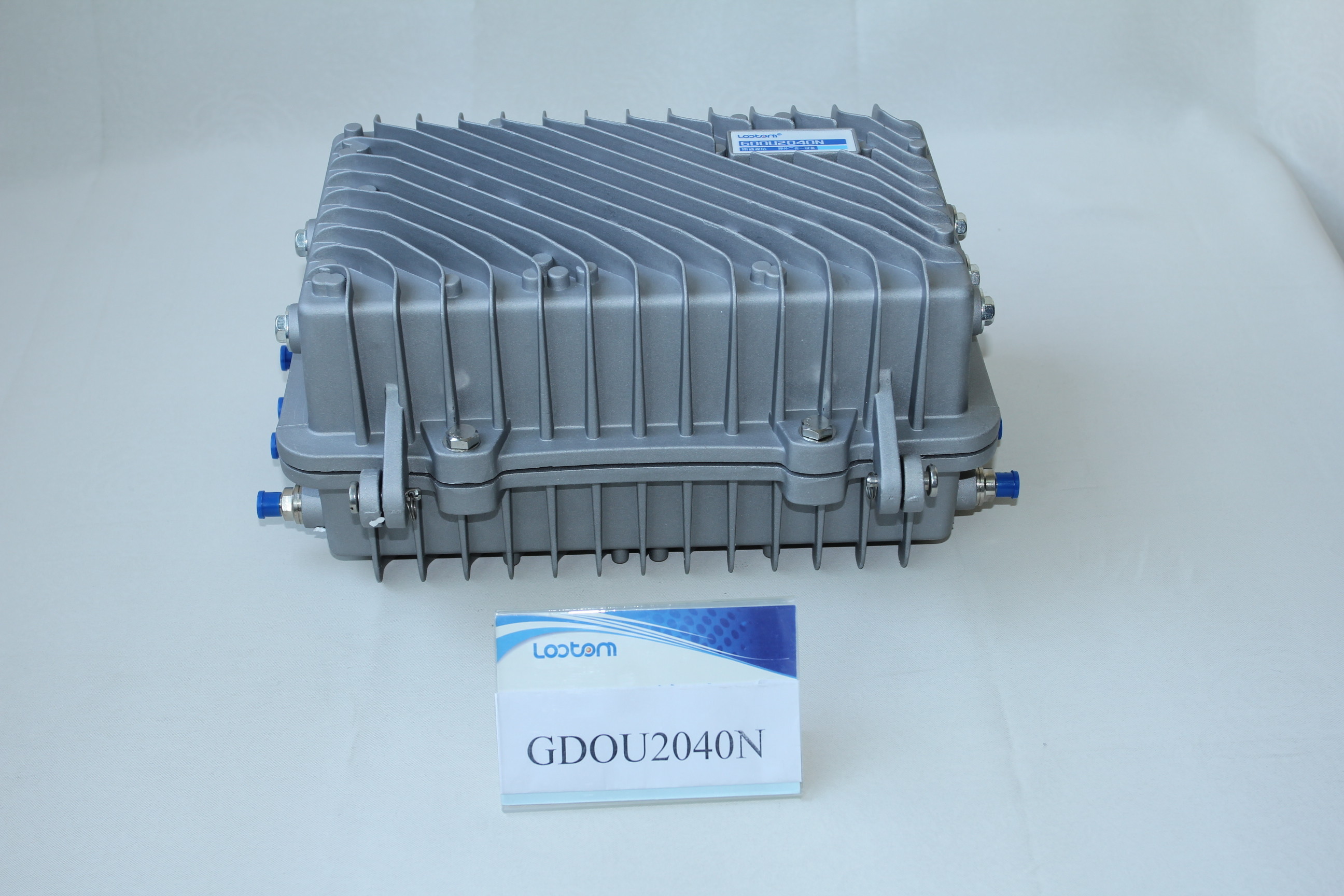

GDOU2040N outdoor two-in-one equipment can provide all IP model of NGB interactive digital TV business independently based on multicast technology, also can compatible with DVB - C digital TV and CMTS digital cable TV system, providing users with integration of radio, film and television industry solutions,which can be widely used in coaxial cable of the family environment and business environment and need not to wire, users can easily create support high-speed network of video, voice and data. Besides the product adopts aluminum waterproof case.



Features

  •  EOC mult-modular design, high shielded performance
  •  Supports 1/2/4 paths output
  •  1/2 /4paths modular output can switch freely
  •  Based on AR7410 chip, the physical rate can up to 500 MBPS
  •  Based on the application of mature HomePlug AV technology (IEEE P1901)
  •  OFDM modulation technology, with good anti-noise ability and performance
  •  Work through branch distributor, need not change existing HFC network
  •  Supports VLAN and overall QoS guarantee
  •  Simple and flexible installation , especially suitable for FTTx network
  •  Supports the SNMP v1 / v2 / v3 and MIB library which is based on radio and television standard

Outdoor Two - In - One EOC Master with In-built EOC and ONU Module for Multicast Technology , GDOU2040N





Technical parameters



Item

Specifications

Standard

IEEE802.3,IEEE802.3X,IEEE802.3u  IEEE P1901

EOC protocol

Comply with HomePlug AV standard

Protocol

CSMA/CA

Transmission Rate

500 Mbps

Modulation Method

Supports 4096/1024/256/64/16/8-QAM,QPSK,BPSK,ROBO

Data channel

Supports data transmitted between Ethernet and coaxial cable network

Transmission Distance

1 km through coaxial cable

Security

128-bit AES encryption

VLAN

IEEE802.1Q (VLAN lagging)

QoS

Supports ToS and CoS package classification

Flow Control

Supports flow control based at ports

SNMP

SNMP v1 v2 v3

802.1X

Supports IEEE802.1X access certification

Watchdog

Supports monitoring CPU by watchdog

Management

Supports user management based on SNMP,WEB and CLI

LED light

Status indicator of Power,EOC,ONU

Interface

1/24 TV/cable interfaces,1 optical interface,

ONU Optical Interface

Parameters

RX wave length:1490nm,TX wave length:1310nm,transmitting power-1~+4dBm,

Receive power:-26.5~-3 dBm,optical connector:SC/APC

Power Consumption

≦30W(4 modules)

Power Supply

input:AC220V/AC60V

Dimension

     330mm×240mm×165mm

Operation Environment

 Storage Temperature:-40˚C~+85˚C

 Operation Temperature:-25˚C~+65˚C

 Humidity:5%~90%(non-condensation)
