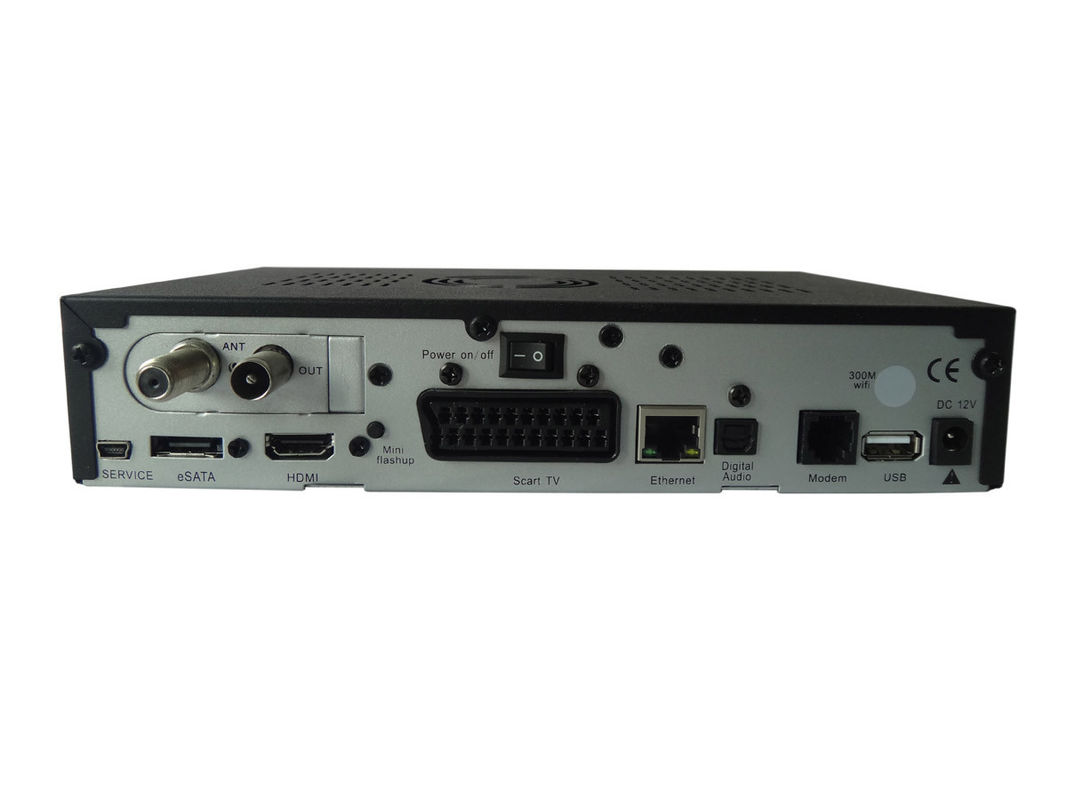

Dreambox 800HD se SIM2.10 DVB-C Digital Cable Receiver with 300Mbps DM800se-C Enigma2

Product Description

•  400 MHz MIPS Processor
•  Enigma 2, Linux Operating System
•  colored OLED - Display
•  MPEG-2 / H.264 Hardware decoding
•  Tuner: DVB-S, optional: DVB-C, DVB-T
•  Tuner Module, Plug&Play
•  2 x Smartcard-Reader (Dreamcrypt CA)
•  Mini USB for Service and software update
•  10/100Mbit Ethernet Interface
•  1 x Scart (RGB, FBAS or S-Video)
•  HDMI
•  2 x USB 2.0 (e.g keyboard)
•  analog modem
•  S/PDIF Interface for digital bit stream out (AC-3)
•  64 MByte Flash, 256 MByte RAM
•  SATA
   - for internal HDD 2,5?
•  unlimited channel lists for TV/Radio
•  channel-change time < 1 second
•  automatic service scan
•  directly bouquet-lists
•  EPG (electronic program guide)
•  multiple LNB-Switching control (supports DiSEqC)
•  OSD in many languages and skin-support
•  Videotext Decoder
•  extern 12V power supply
•

800HD se Technical Data

DBS-Tuner mit DVB-S2:
Frequency Range  950-2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 - 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10- 31 Mbaud/s (8PSK) , 10 ?30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.264
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Mini USB service connector:
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
Analoge modem:
analoge modem for Internet connection
SATA Interface:
for internal 2.5" HDD
USB: 2 x USB 2.0
LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)
Power consumption: < 15W at 12V
External PSU
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 3,0A
Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 225 mm x 145 mm x 52 mm
Weight: 940 g  without HDD
