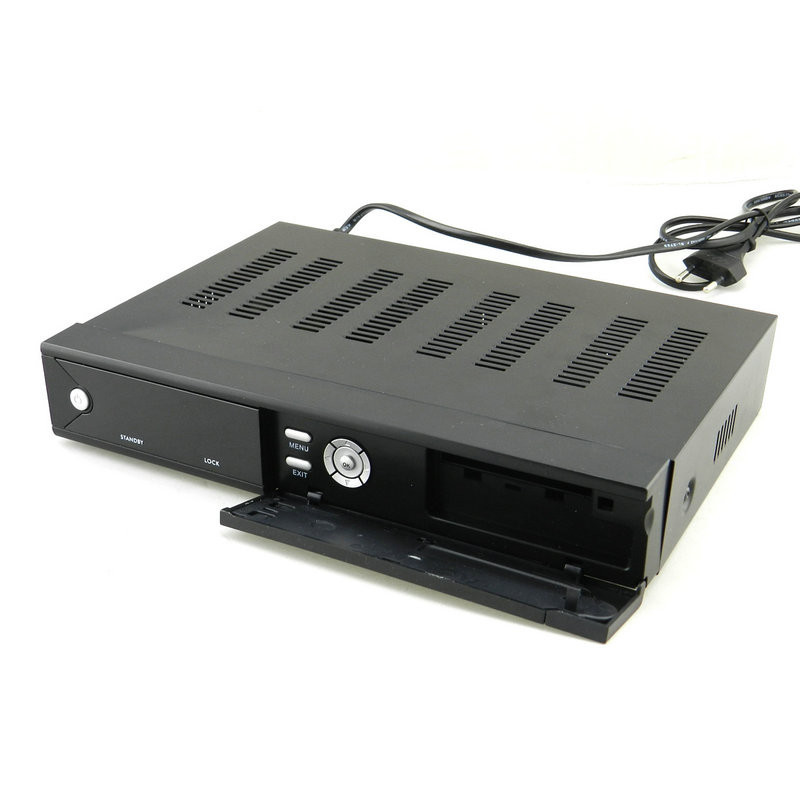

HD DVB-C Digital Cable Receiver MPEG-4 / H.264 TV Box Support PVR Parental Local and Teletext

Place of Origin: China Brand Name: Azskybox
Certification: CE Model Number: Hdc900

Detail Information

FTA(Free To Air): Yes Type: Digital
BISS: Support Patch: Support
Mpeg4/Mpeg5: Yes OEM/ODM: Support
High Definition: Yes USB: 2.0
PVR(Store Usb Disk): YES H.264 AVC: Support
Twin Proposal: Yes Chip: ALI3602

Product Description

Digital cable receiver manufacturer azskybox hdc900 dvb-c hd mpeg-4/H.264 set top box support pvr parental local and teletext



Specifications:



1. Fully SD/HD DVB-C compliant,support full HD 1080p

2. Support SD/HD MPEG2 and MPEG4 AVC H.264

3. Common Interface for various CAS modules

4. Auto and manually scan all available TV and radio channels

5. Powerful and highly effective 7-day EPG function

6. Multi-language menu,subtitle and audio output supported

7. USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

8. Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.

9. Support parental local and Teletext

10. Easy to use and attractive menu

11. Support various media files,including music,photo and movie files



Specifications:



 One slot for Smart Card in Conax system
- One Slot for Common Interface Module
- Support of SD/HD(MPEG2/MPEG4 H.264),DVB-S,DVB-S2 system
- High resolution video output-HDMI
- Standard resolution video output-SCART,RCA
- Supported video resolutions-576p,720p,1080i
- Front panel display-LED 4 digit
- Digital audio output S/PDIF-coaxial
- Analog audio output-RCA stereo
- Software update by USB,RS-232C
- 12V out for connecting external devices
- Lan connector (Ethernet)
- USB connector compliant with USB 2.0 standard
- Low power consumption in Stand-by mode,below 1W
- Automatic Stand-By mode after 3 hours from last using receiver for power saving
- Compatible with Diseqc 1.0,1.1,1.2 and USALS
- Electronic Program Guide-EPG
- Multilngual Menu, including English
- Time Shift (video pausing,rewinding)
- PVR Ready-possibility to record on external USB drive
- Recording one channel and watch another FTA channel within a single transponder
- Blind Scan supported
- Parental Lock for channels and Menu
- Possiility to save up to 5000 channels(TV and Radio)
- Fast channels switching
- Possibility of creating own channels lists
- Possibility of creating Favourite Lists
- Sort/Group/Channels search options
- Channel Editing features-Remove,Lock,Skip,Move,Rename
- Subtitle support-Teletext and DVB
- Teletext support
- Tool to convert files for playback on your computer
- Build-in Dolby Digital decoder(downmix to stereo)
- Colour-black
- OPTICUM USB HDD supported
- Channels Editor
- Support connection to an external FTP server (FTP client)
Main processor
- Type: ALI 3602
- Speed: 396 MHz

Memory:


- FLASH size: 4 MBytes
- SDRAM size: 128 MBytes

Tuner & Channel Decoder (Satellite):


-  Input connector
- Type: F-Type
- Standard: IEC 169-24
- Gender: Female


Loop through out:


- Type: F-Type
- Standard: IEC 169-24
- Gender: Female
- Frequency Range from 950MHz to 2150MHz
- Input impedance Value: 75 Ω,Type: unbalanced
- Signal level from -65 dBm to -25 dBm
- LNB Power 13-18VDC Max. current: 500 mA
- Overload Protection
22kHz Tone
- Frequency: 22 kHz±1 kHz
- Amplitude: 0,6±0.2 V
DiSEqC Control: Version 1.0;Version 1.1;Version 1.2;USALS


Demodulation: 8PSK,QPSK:


- Input Symbol Rate DVB-S from 2 Ms/s to 45 Ms/s
- Input Symbol Rate DVB-S2 QPSK from 10 Ms/s to 30 Ms/s
- Input Symbol Rate DVB-S2 8PSK from 10 Ms/s to 30 Ms/s
- FEC Decoder DVB-S: 1/2; 2/3;3/4;5/6;7/8;AUTO
- FEC Decoder DVB-S2 (QPSK): 1/2;2/3;3/4;3/5;4/5;5/6;8/9;9/10;AUTO
- FEC Decoder DVB-S2 (8PSK): 2/3;3/4;3/5;5/6;8/9;9/10;AUTO

MPEG Transport Stream A/V Decoding:


- Transport Stream
- MPEG-2 ISO/IEC 13818-1&MPEG-4 ISO/IEC 14496-1
- MPEG Profile level:MPEG-2 MP@ML&MPEG-2 MP@HL;MPEG-4 AVC/H.264 HP@L4
- Aspect Ratio: 4:3 Letter Box,4:3 Pan Scan,16:9
- Video Resolution: 720*576[PAL],720*480[NTSC],1920*1080i
- Audio Decoding: MPEG/MusiCam Layer 1;MPEG/MusiCam Layer 2;Dolby AC-3
- Audio ModeStereo: Join Stereo,Mono
- Sampling Rate: 32 kHz;44,1 kHz;48 kHz

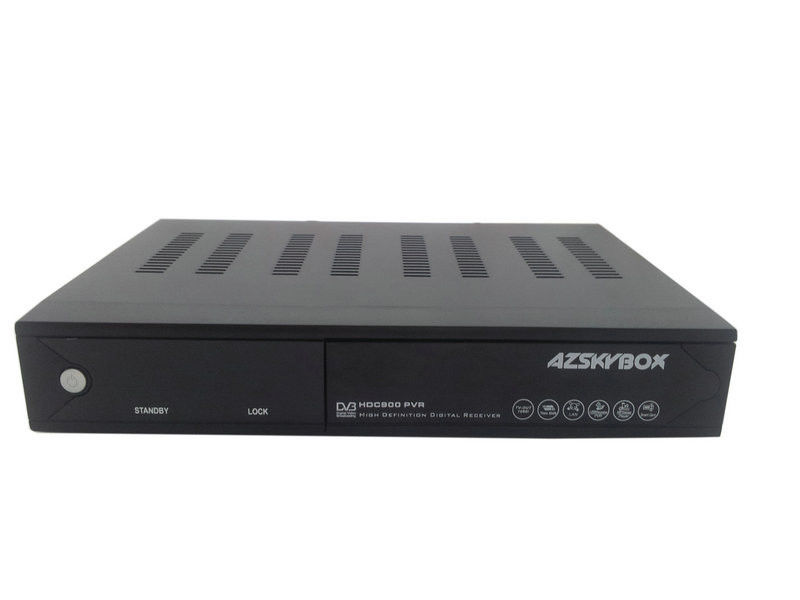

Front Panel:


- Display:Digits 4
- Buttons Quantity: 7
- Slots Card Reader: 1
- Common Interface: 1

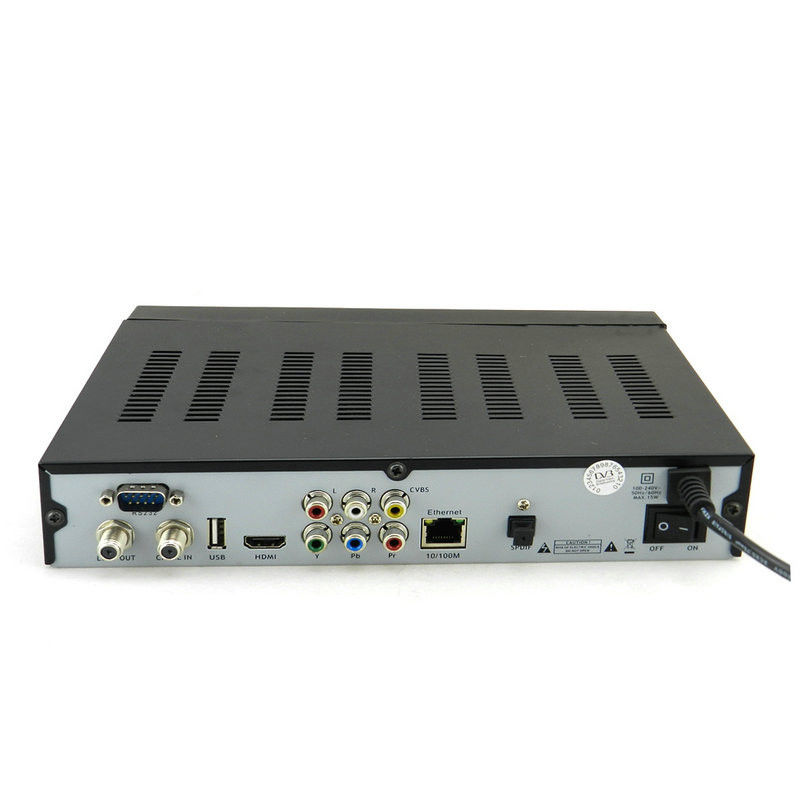

TV SCART:


- Video CVBS output
- Video RGB output
- Audio R/L output

RCA:


- Video CVBS output
- Audio R/L output: 1xR+L pair
- Digital Coaxial Audio output
- 0/12V output
- 12V DC RCA output


RS-232:


- Type: 9-pin D-SUB
- Gender: Male
- Transfer Rate: 115,2 bps
- 1*USB Type: 2.0
- 1*HDMI Slots: Version: 1.2
- ETHERNET: 1xRJ45
Power Supply
- Input VoltageType: AC 50/60Hz; from 100V to 250V

Power Supply:


- Type: SMPS
- Power Consumption: 12W max.
- Standby Power Consumption: <1W max.

Protection: Internal Fuse,Lightning protection
- Physical Specification
- Size: (Wigth)220 mm*(High)40 mm*(Depth)160 mm
- Weight (netto): <1.50 kg
- Operating Temperature from: 5 °C to 45 °C
- Storage Temperature from: -10 °C to 70 °C
