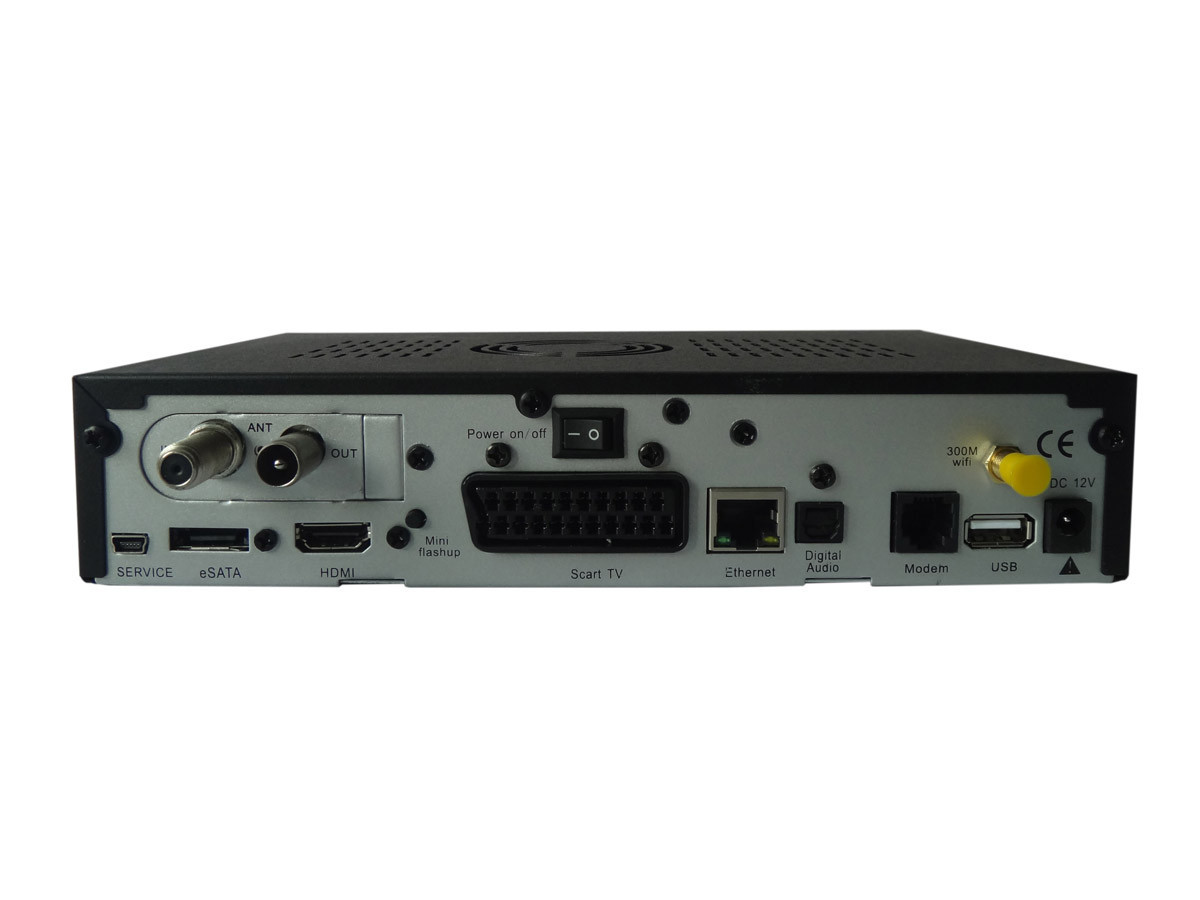

HDMI Dm800 SE C wifi HD Cable TV Receiver DVB-C SIM2.10 Linux dm800se-c Enigma2

Minimum Order Quantity : 10pcs Packaging Details : 10 pcs/carton
Delivery Time : 7-25 days Payment Terms : Western Union, T/T, MoneyGram
Supply Ability : 10000 PCS/Month
Place of Origin: China Brand Name: dreambox
Model Number: dm800se-c

Detail Information

Material: Iron Shell Color: Black
Packag: Neutral With The Original LOGO Linux OS: Yes
Bootloader: #84 SIM Card: SIM 2.10
High Light:

digital cable tv receiver

,

hd dvb-c receiver

Product Description

HDMI Dm800 SE C wifi HD Cable TV Receiver DVB-C SIM2.10 Linux dm800se-c Enigma2 0

- 400 MHz processor

- SIM2.10 card

- BL 84# and GP510

- 6cm quiet fan and HDMI connector

- 3 Logo for choose:  original /  Sunray

  - supports the Linux TV API

- 10/100MBit compatible Ethernet Interface

- HDMI connector

- plug & play Tuner

- colored OLED display

- plug & play slot for an internal 2,5" SATA hard disk

HDMI Dm800 SE C wifi HD Cable TV Receiver DVB-C SIM2.10 Linux dm800se-c Enigma2 1

HDMI Dm800 SE C wifi HD Cable TV Receiver DVB-C SIM2.10 Linux dm800se-c Enigma2 2

  •   400 MHz MIPS Processor
  •  Enigma 2, Linux Operating System
  •  colored OLED - Display
  •  MPEG-2 / H.264 Hardware decoding
  •  Tuner: DVB-C, optional: DVB-s, DVB-T
  •  Tuner Module, Plug&Play
  •  2 x Smartcard-Reader (Dreamcrypt CA)
  •  Mini USB for Service and software update
  •  10/100Mbit Ethernet Interface
  •  1 x Scart (RGB, FBAS or S-Video)
  •  HDMI
  •  2 x USB 2.0 (e.g keyboard)
  •  analog modem
  •  S/PDIF Interface for digital bit stream out (AC-3)
  •  64 MByte Flash, 256 MByte RAM
  •  SATA
     - for internal HDD 2,5?
  •  unlimited channel lists for TV/Radio
  •  channel-change time < 1 second
  •  automatic service scan
  •  directly bouquet-lists
  •  EPG (electronic program guide)
  •  multiple LNB-Switching control (supports DiSEqC)
  •  OSD in many languages and skin-support
  •  Videotext Decoder
  •  extern 12V power supply
  •
  • 800HD se Technical Data





    Video decoder:
    Video Compression MPEG-2 and MPEG-1 compatible, H.264
    Video Formats 4:3 / 16:9
    Letterbox for 4:3 TV-Device

  •



    Audio decoder:
    Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
    Audio Mode Dual (main/sub), Stereo
    Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
  •



    Output analog:
    Output Level L/R 0,5 Vss on 600 Ohm
    THD > 60 dB (1 kHz)
    Crosstalk < -65 dB
  •



    Output digital:
    Output Level 0,5 Vss on 75 Ohm
    Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
    S/PDIF-Output optical, Toslink
  •



    Ausgang Video:
    Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm
  •



    Video parameter:
    Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
    Teletext filter in conformity with ETS 300 472 Standard
  •



    TV-Scart:
    Output: FBAS, RGB, S-Video
  •



    Mini USB service connector:
    Function: Update of Firmware
  •



    Ethernet:
    10/100 MBit compatible interface
    Function: Update of Firmware
  •



    Analoge modem:
    analoge modem for Internet connection
  •



    SATA Interface:
    for internal 2.5" HDD
  •



    USB: 2 x USB 2.0
  •



    LNB power and polarisation per tuner:
    LNB Current 500mA max.; short-circuit-protected
    LNB Voltage vertical < 14V no load, > 11,5V at 400mA
    LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
  •



    Count of active satellite position:
    DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)
  •



    Power consumption: < 15W at 12V
  •



    External PSU
    Input: 110-240V AC / 50-60Hz / 0,6A
    Output: 12V = / 3,0A
  •



    Physical specification:
    Ambient Temperature +15°C...+35°C
    Humidity < 80%
    Size (W x D x H): 225 mm x 145 mm x 52 mm
    Weight: 940 g  without HDD

HDMI Dm800 SE C wifi HD Cable TV Receiver DVB-C SIM2.10 Linux dm800se-c Enigma2 3

  •   1x 800HD se wifi SIM2.10 DVB-C receiver

      1x Remote Controller

      1x HDMI Cable

      1x Power Supply+Power Cable

      1x Scart-AV adapter

      1x AV Cable

  •   1x wifi antenna
